Lectrosonics 16 Channel DSQD Digital Wireless Receiver System w/ Dante (470-608MHz)
Lectrosonics 16 Channel DSQD Digital Wireless Receiver System w/ Dante (470-608MHz)
Lectrosonics 16 Channels DSQD Digital Wireless System
Unit 1700 - NEVER USED
470-608 MHz

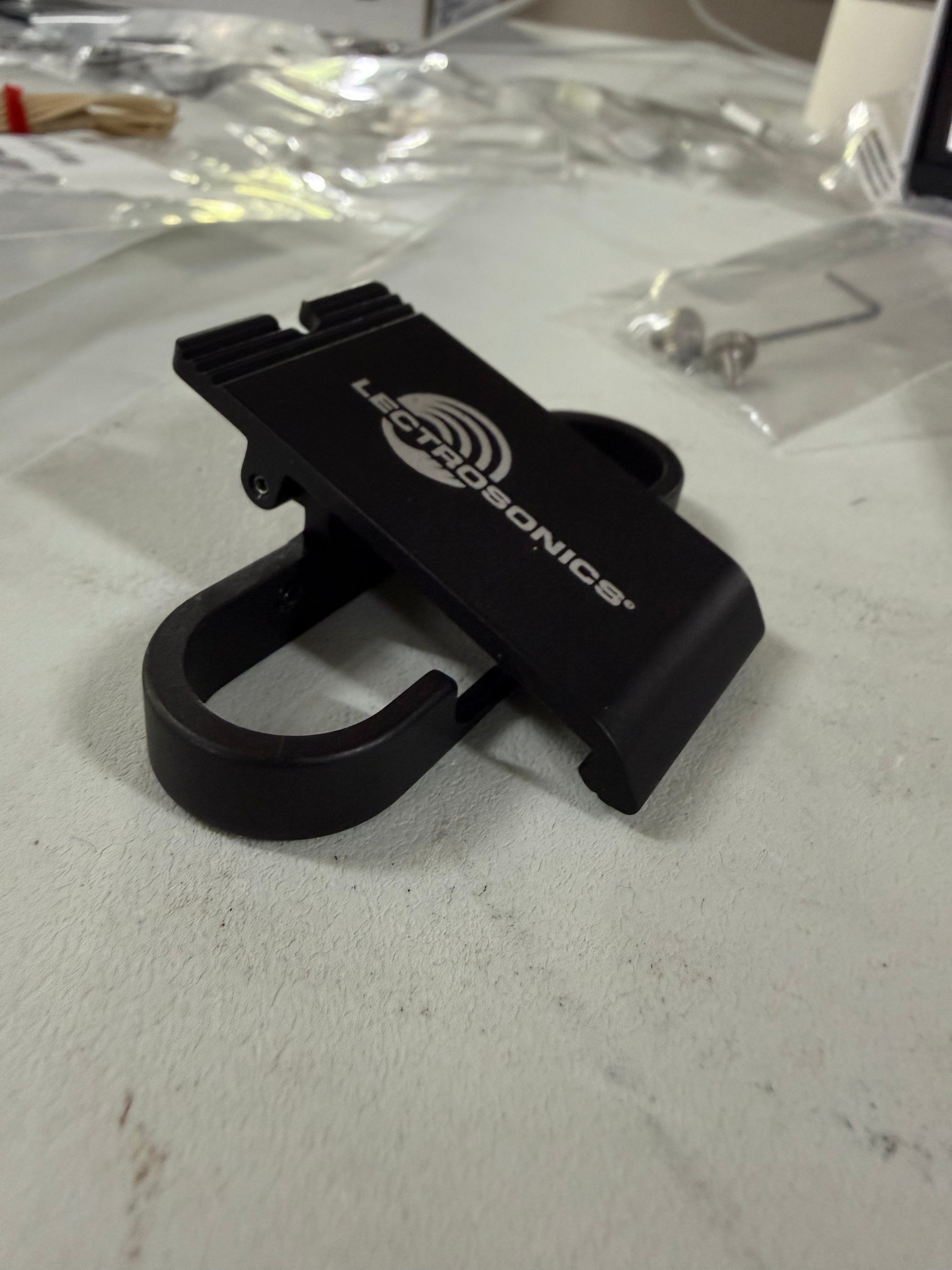

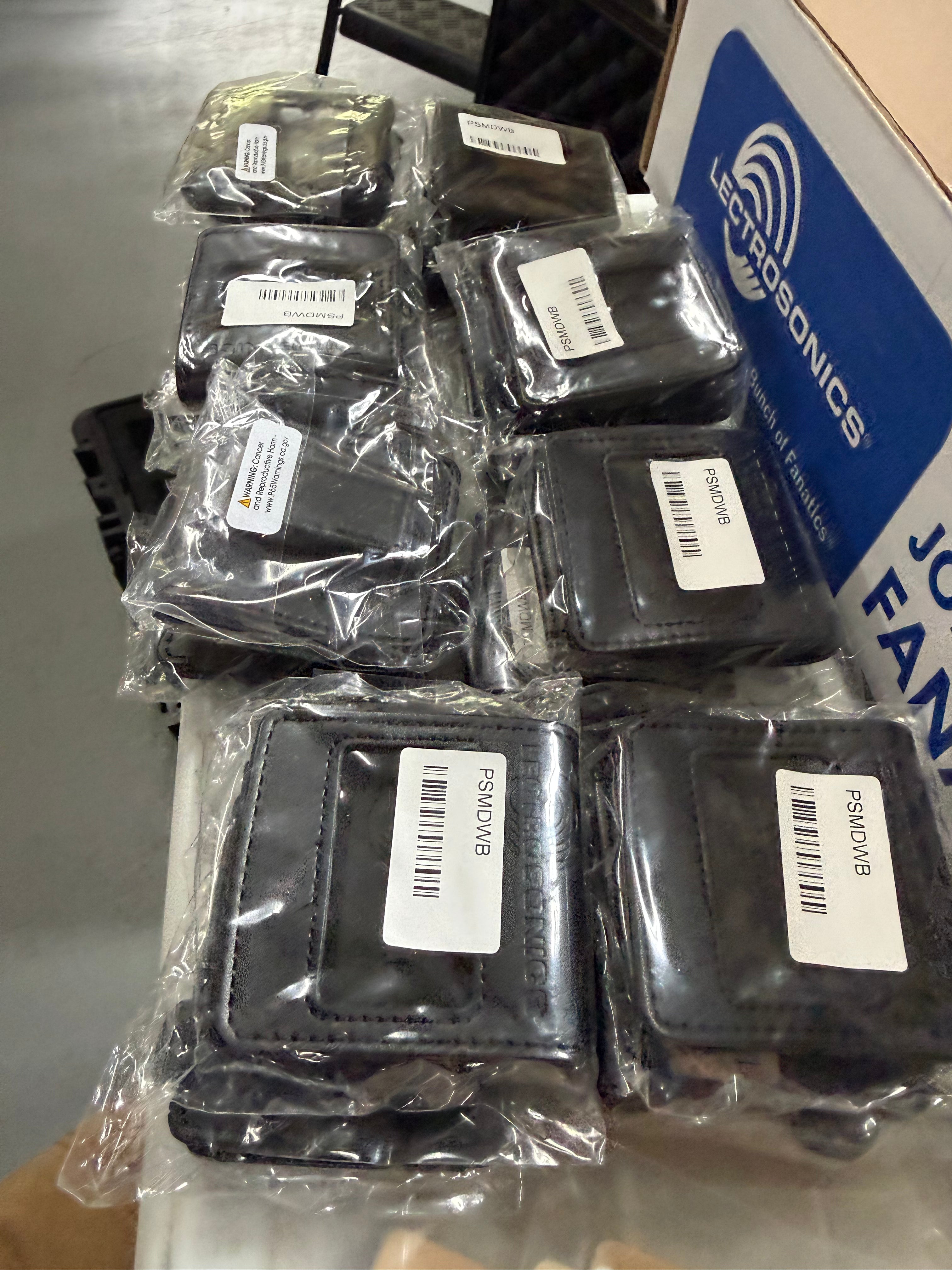

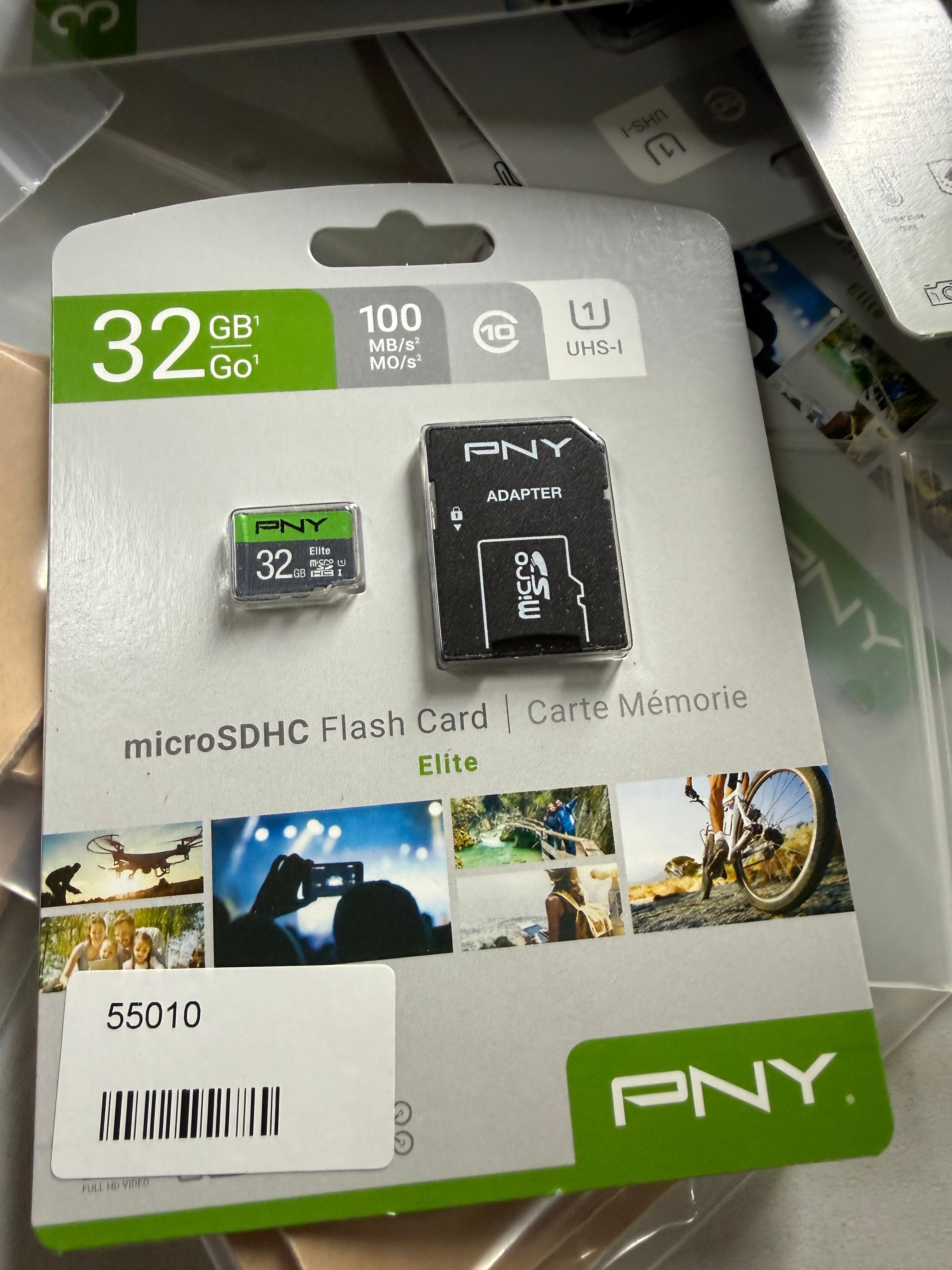

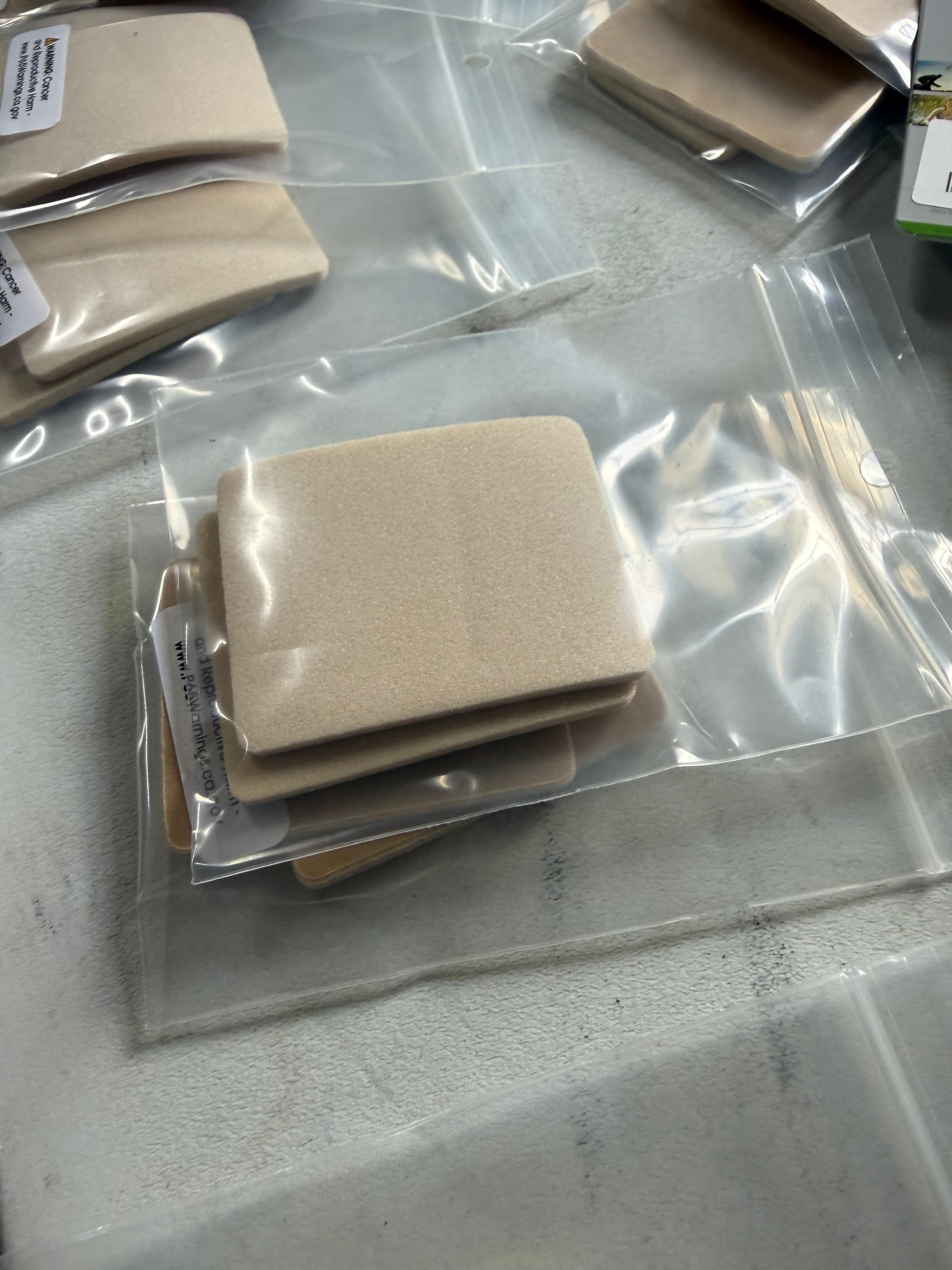

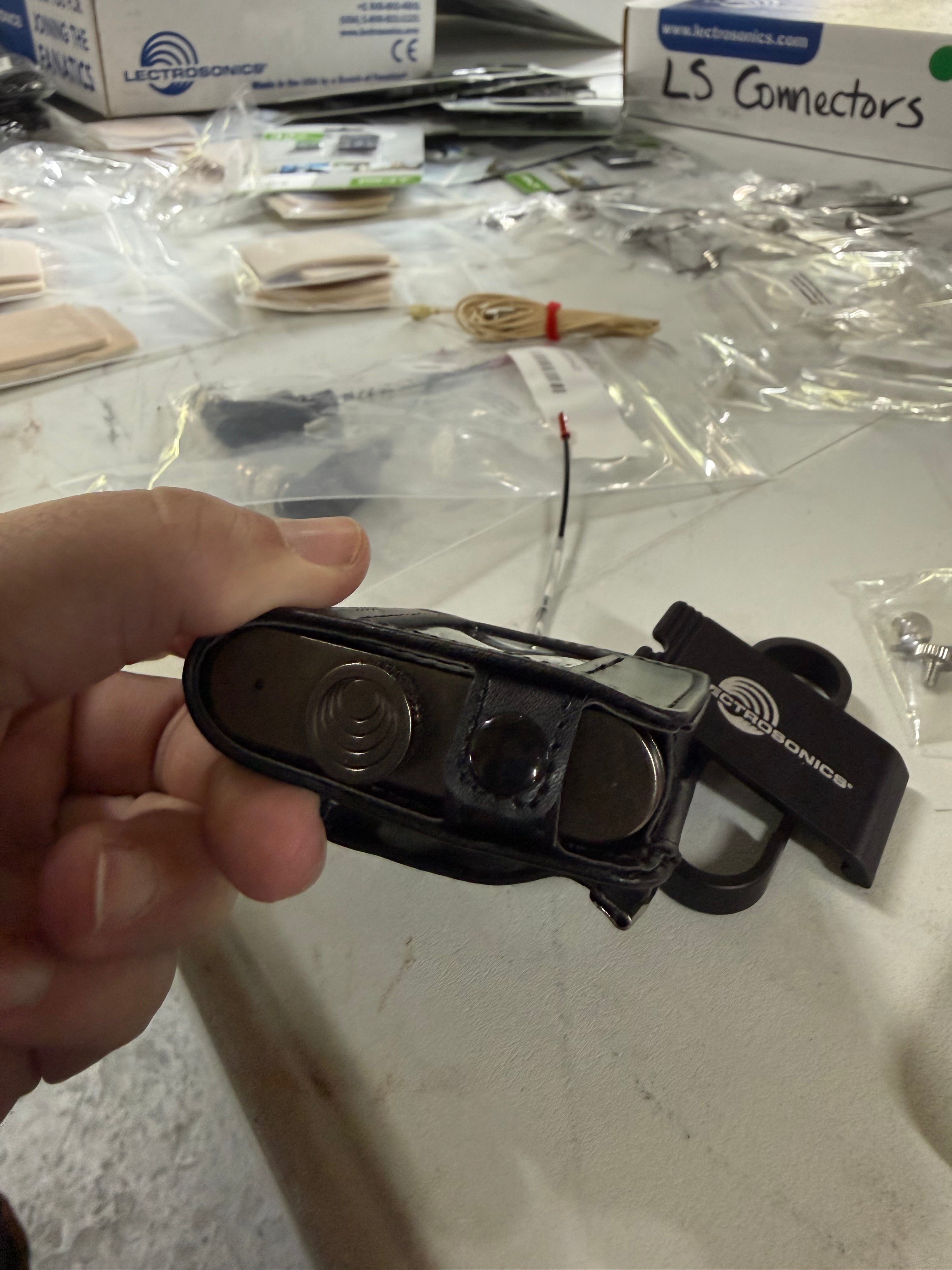

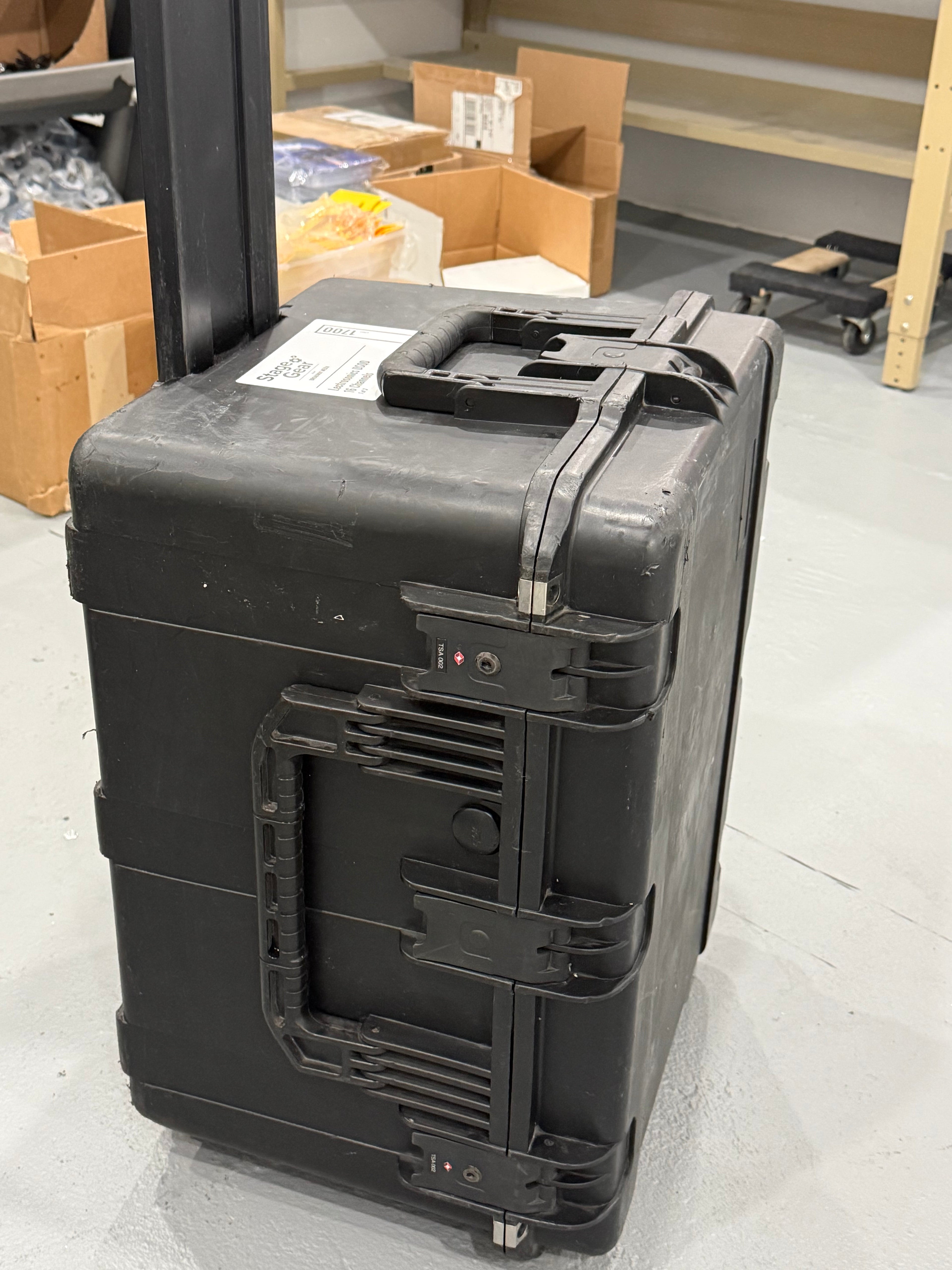

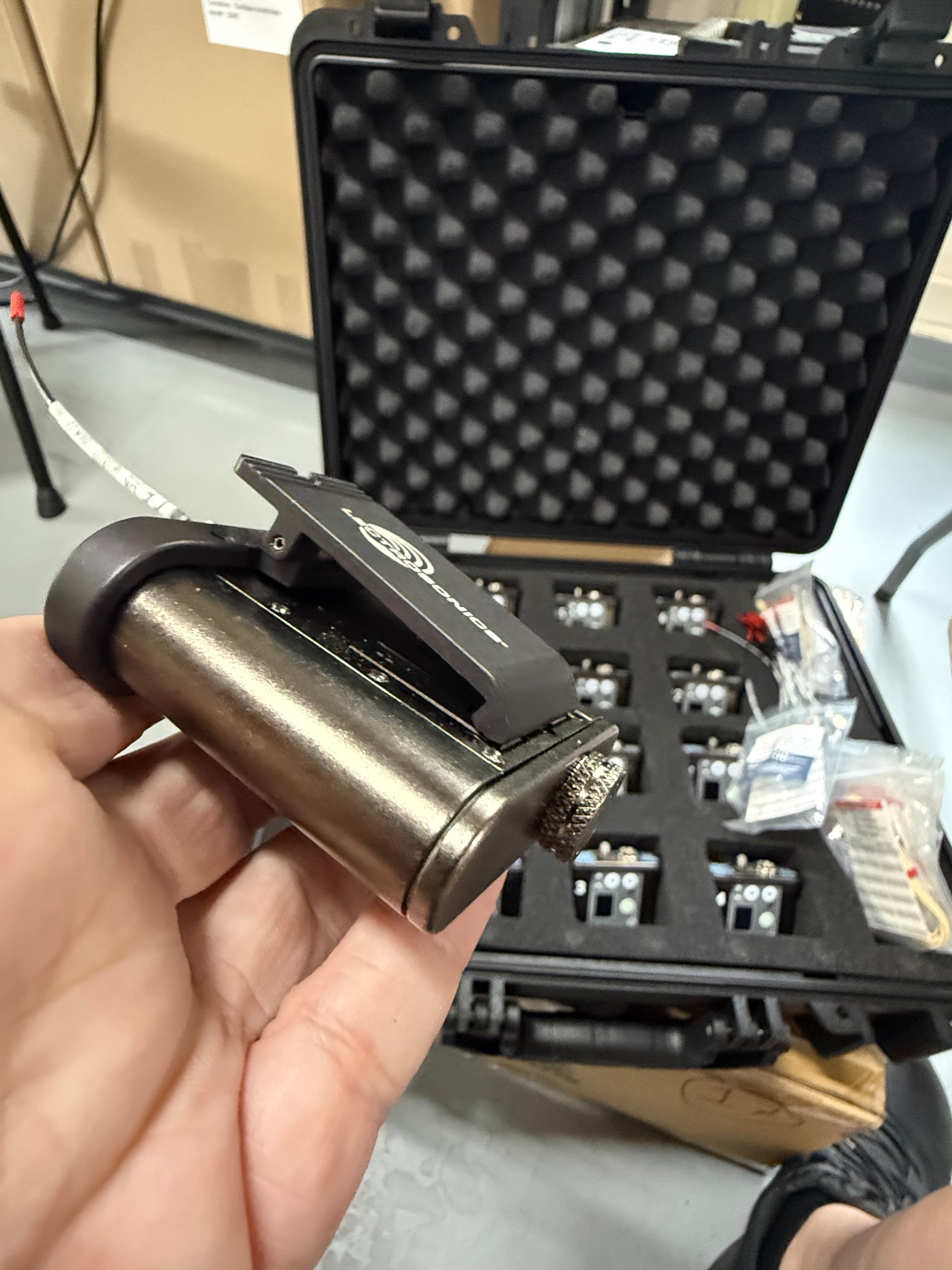

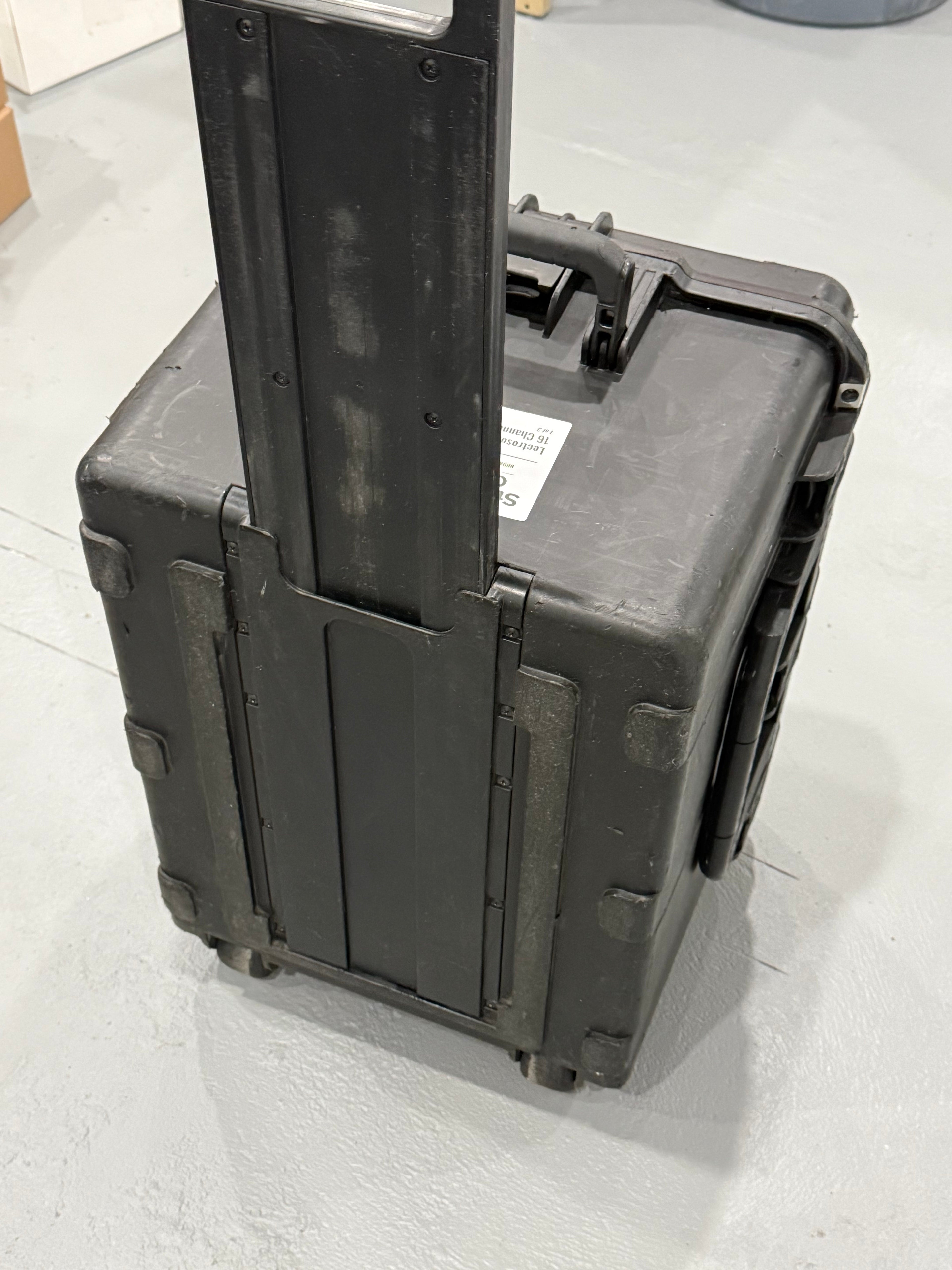

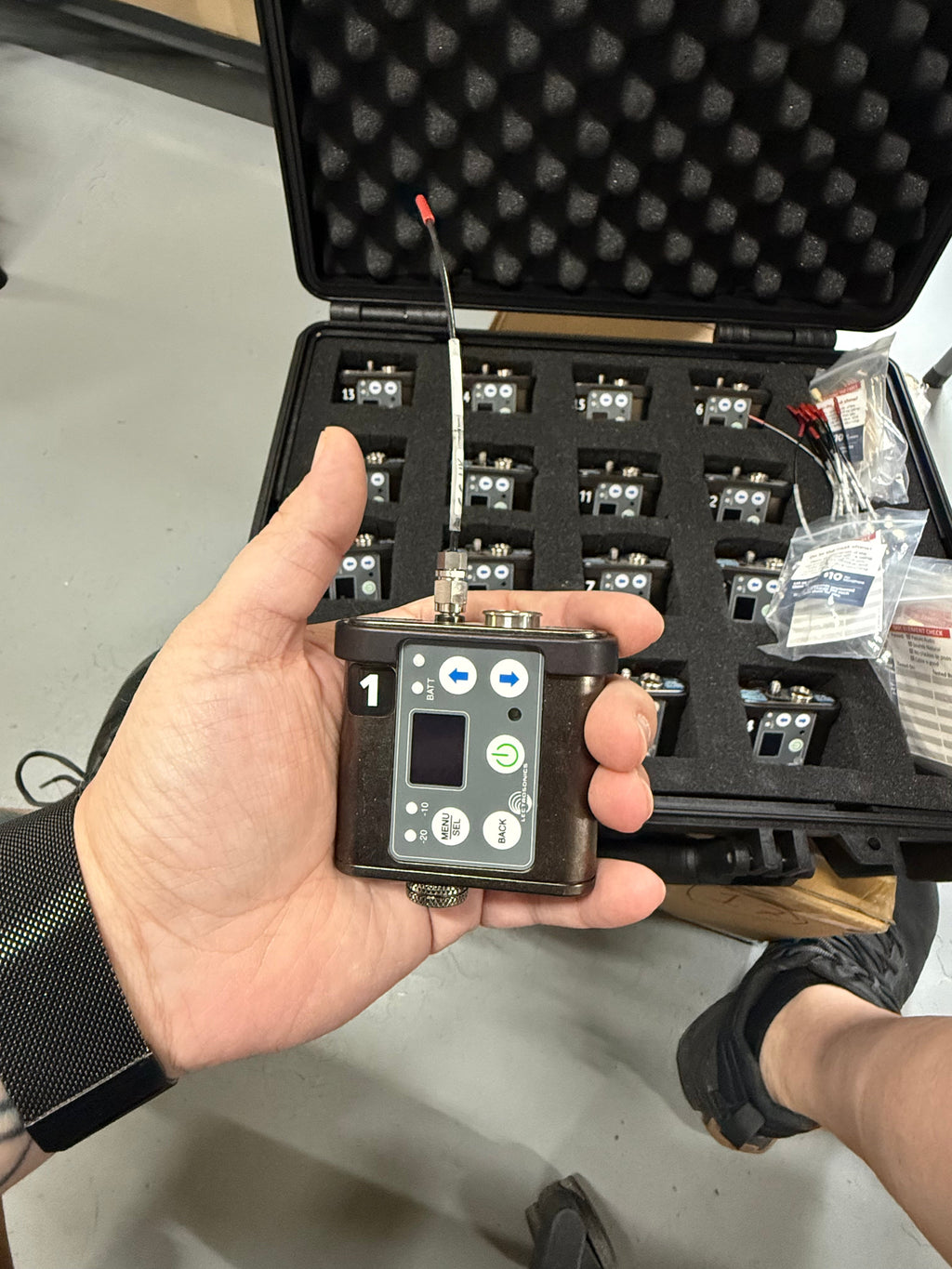

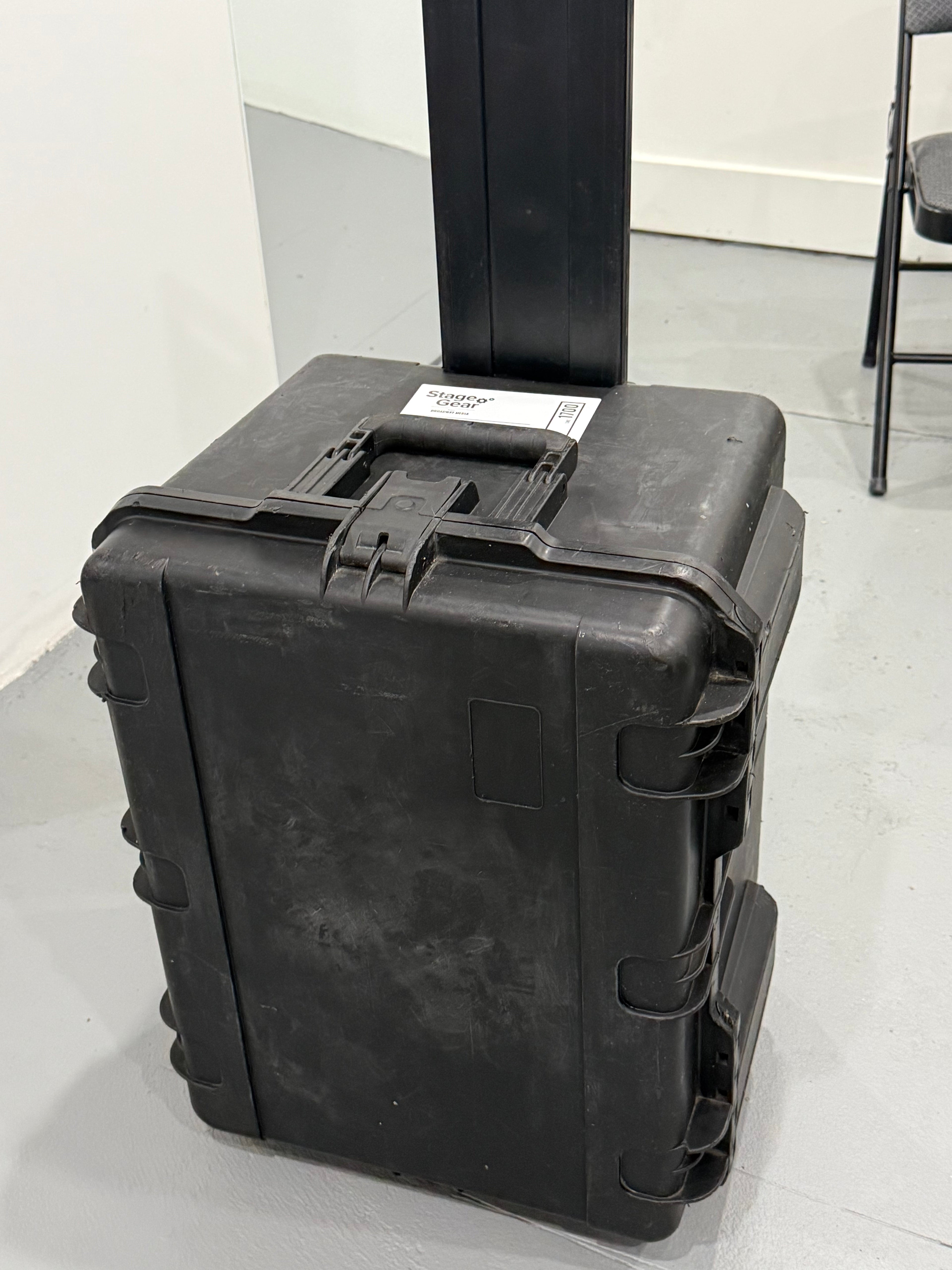

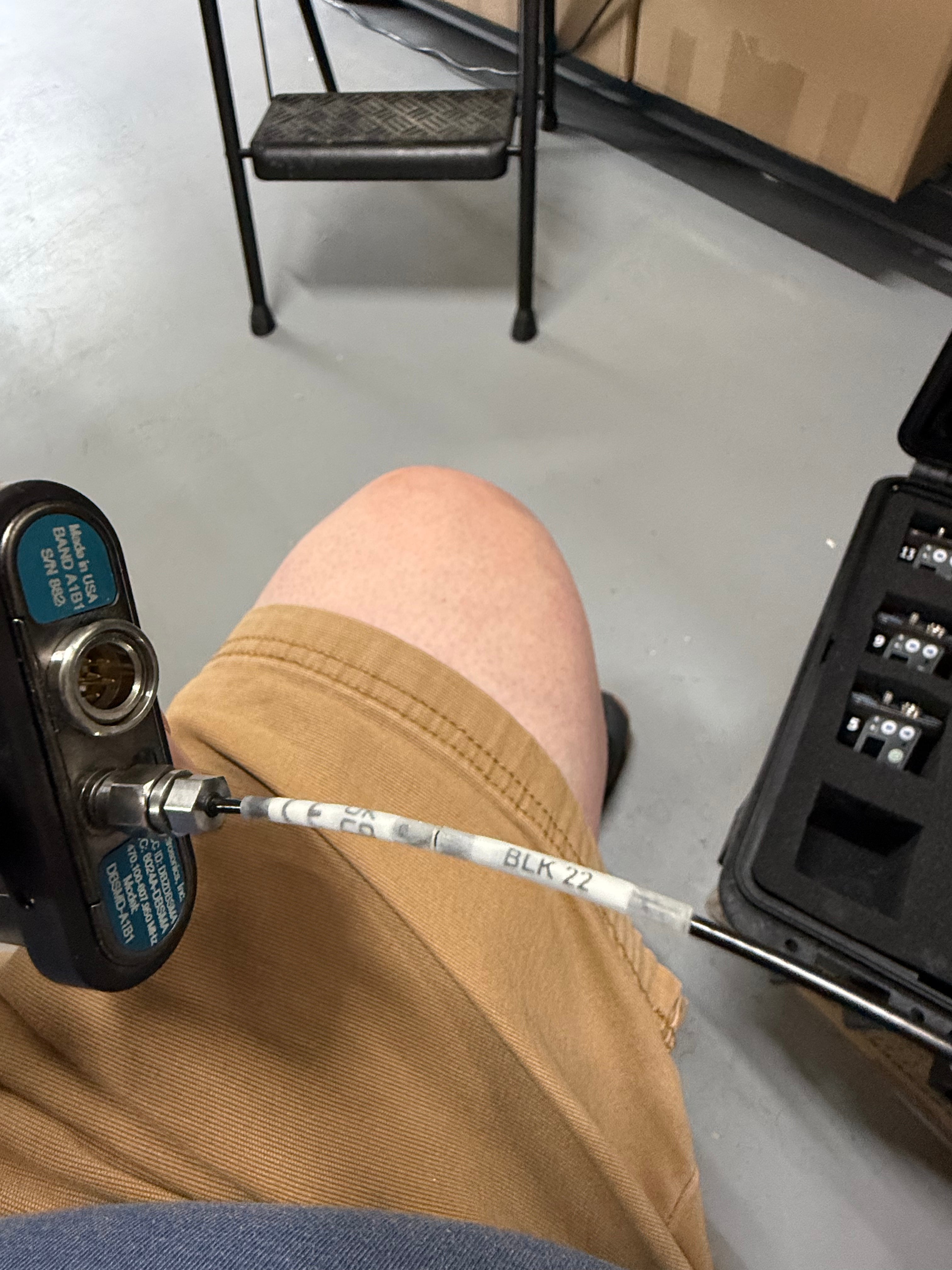

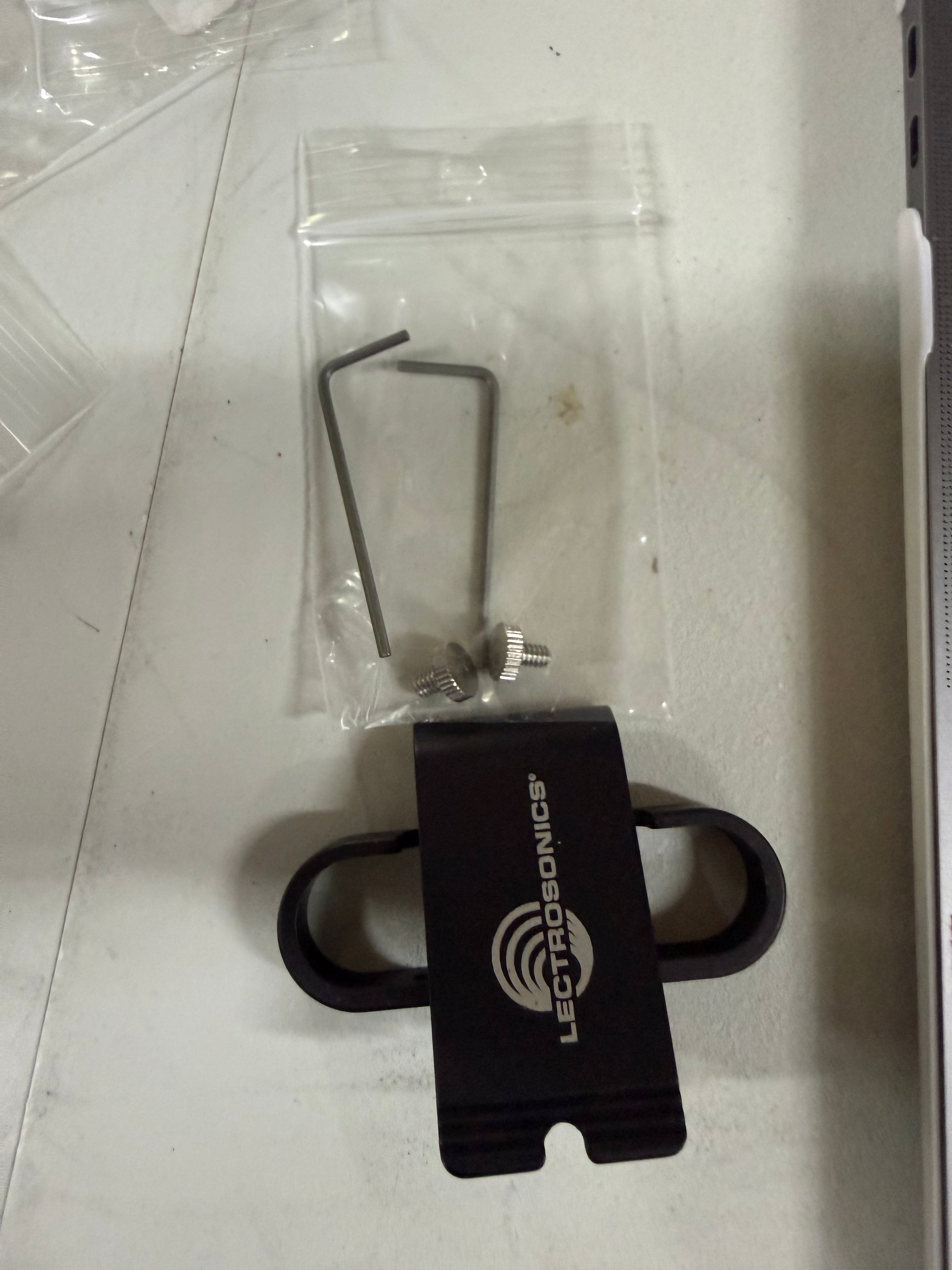

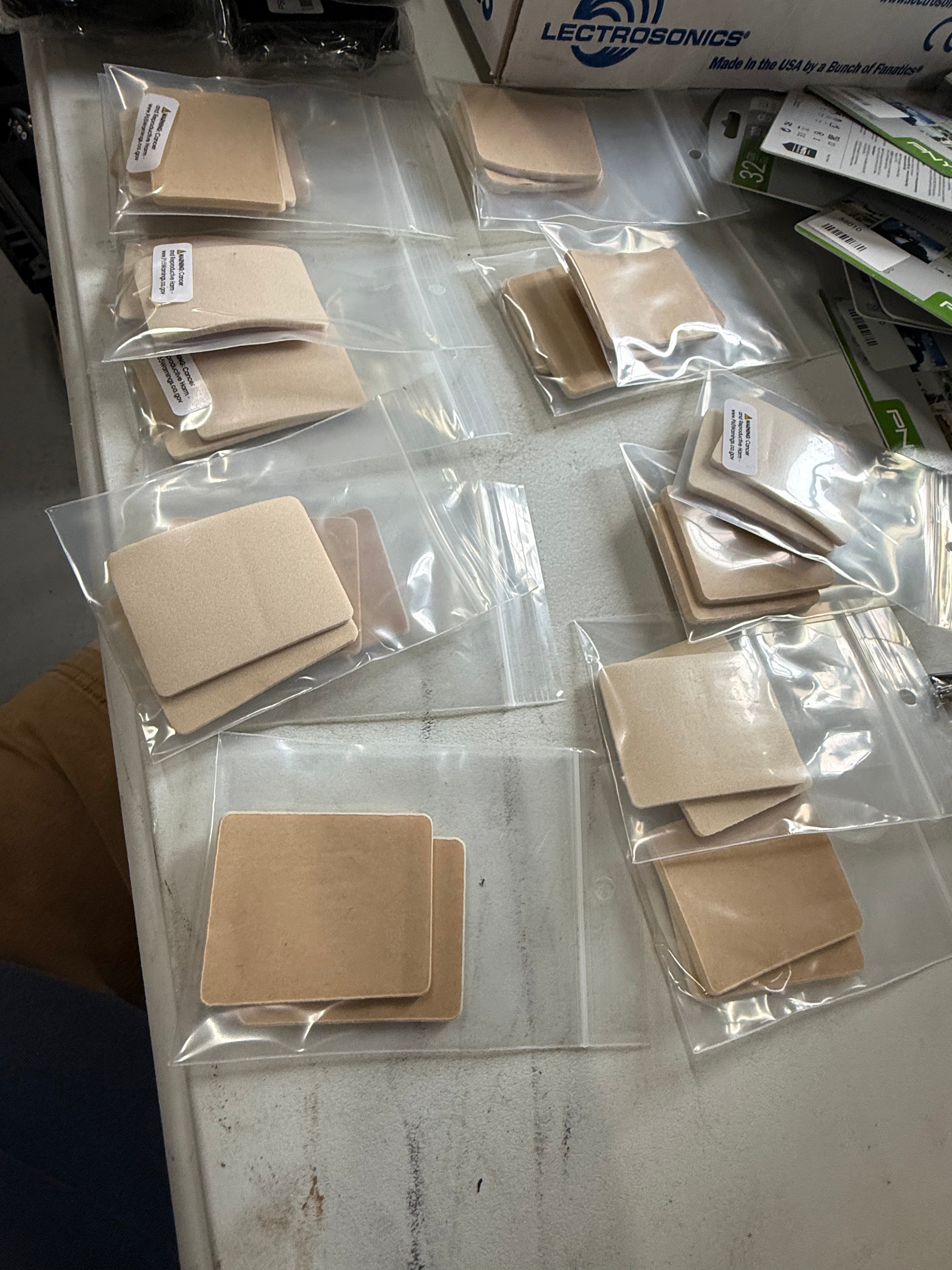

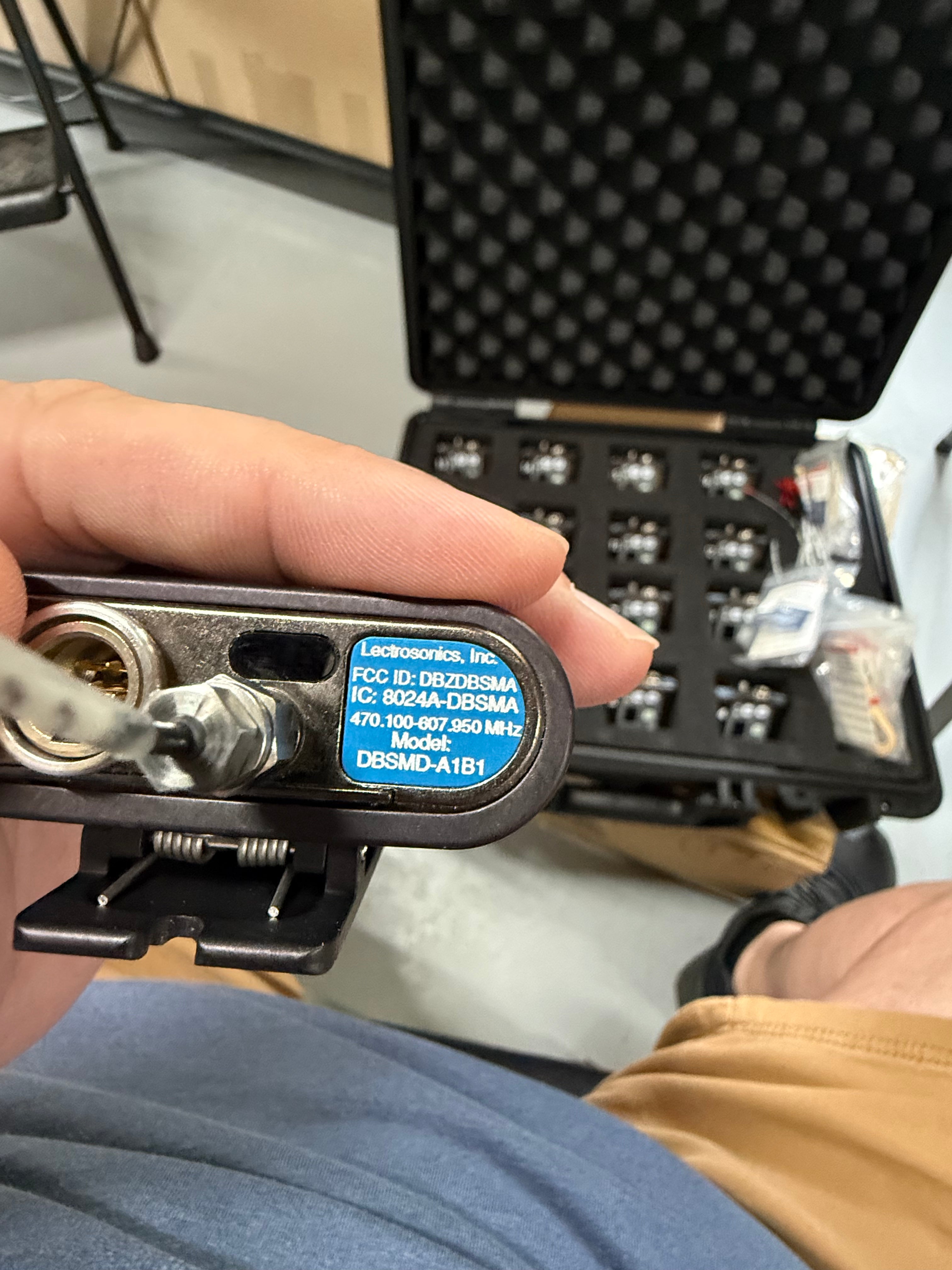

Comes in SKB Fly Rack Case w/ Wheels. Transmitters have their own case. Accessories Included!

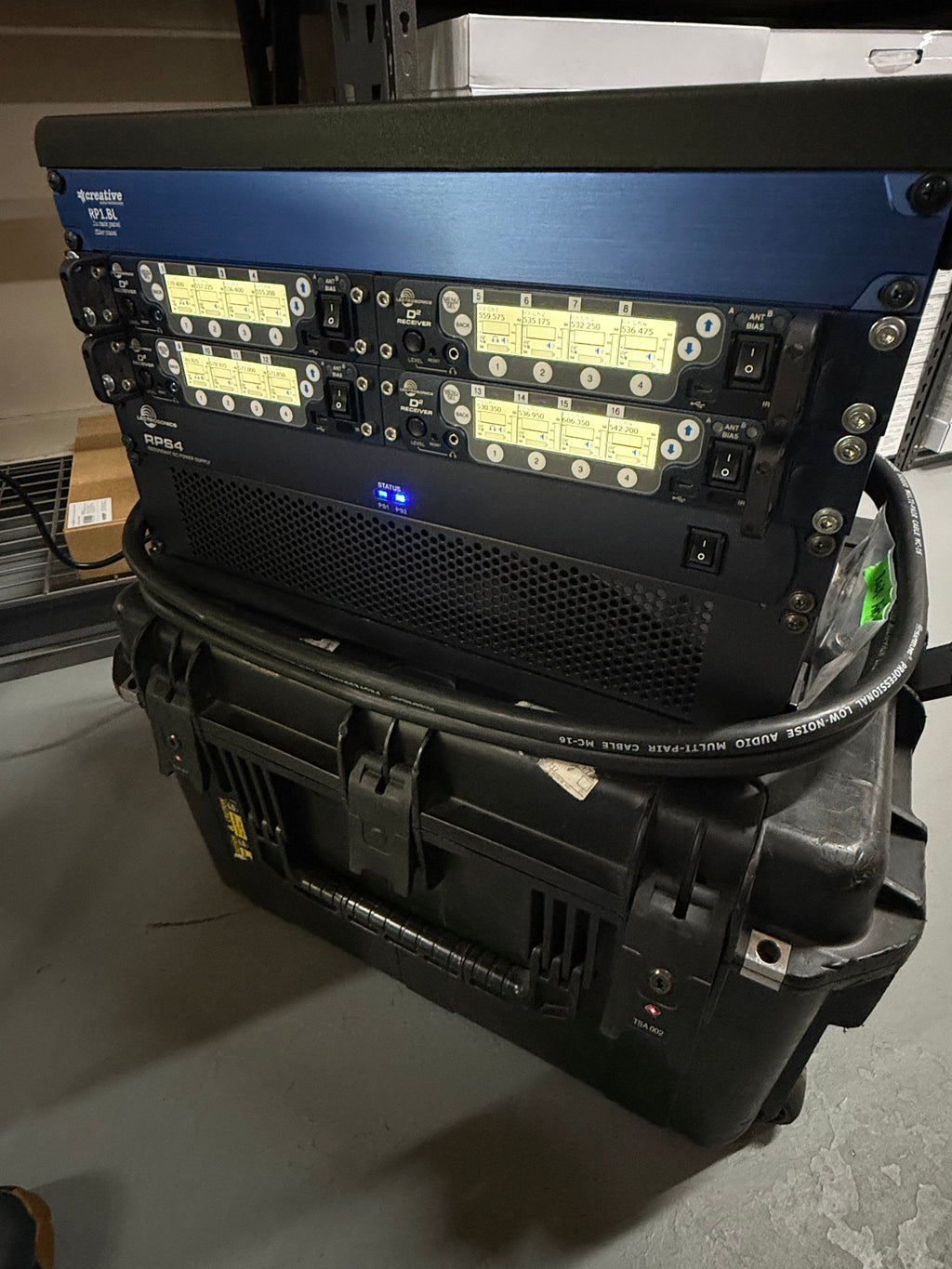

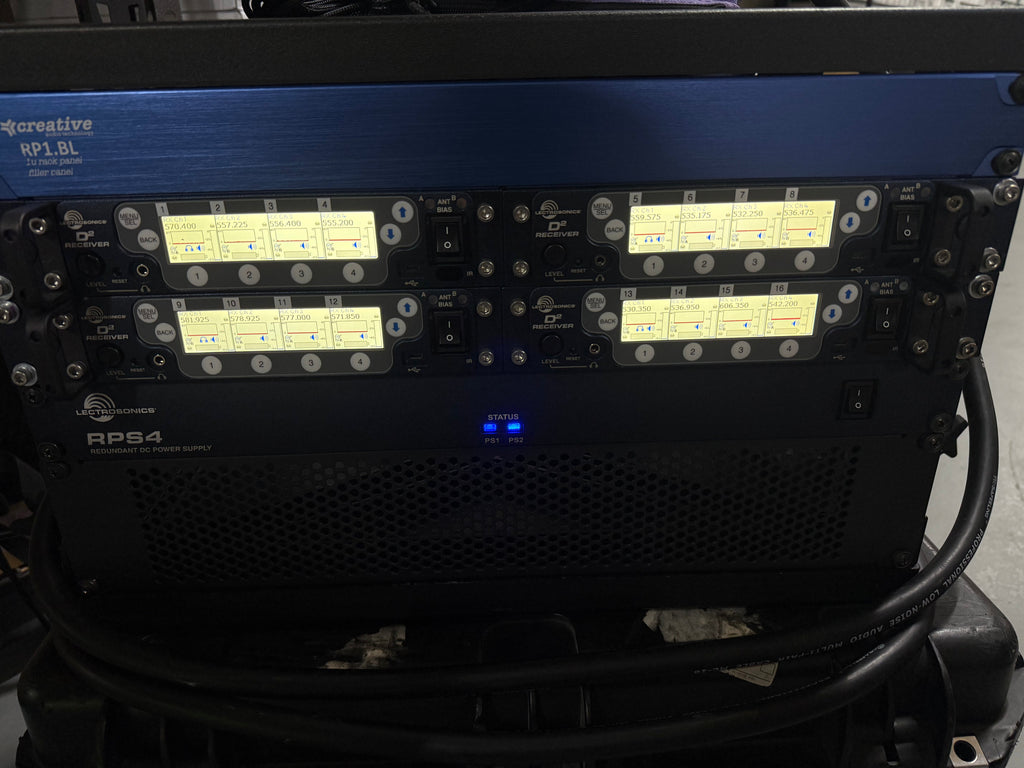

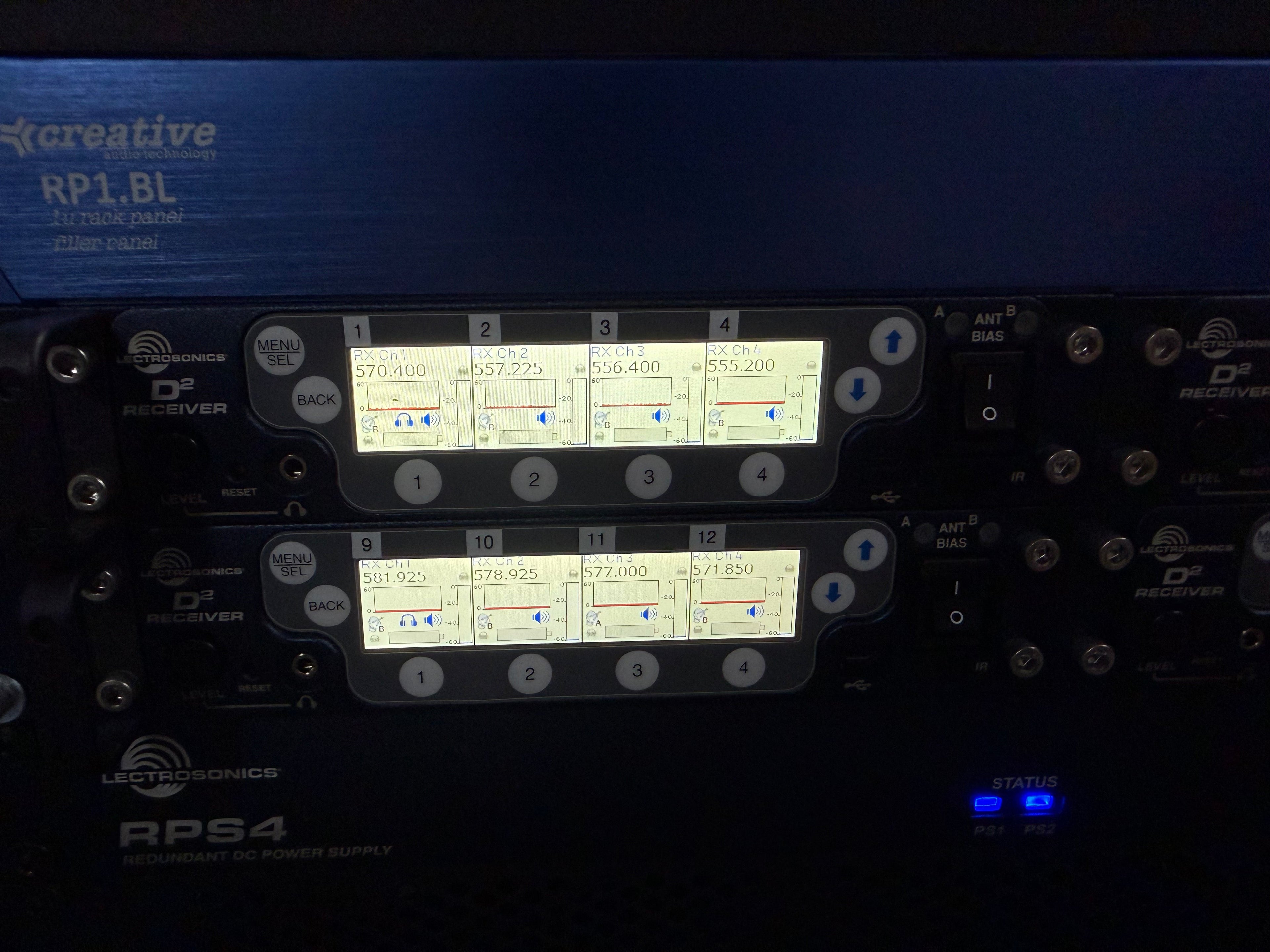

Pre-Rack'd and Ready to Go!

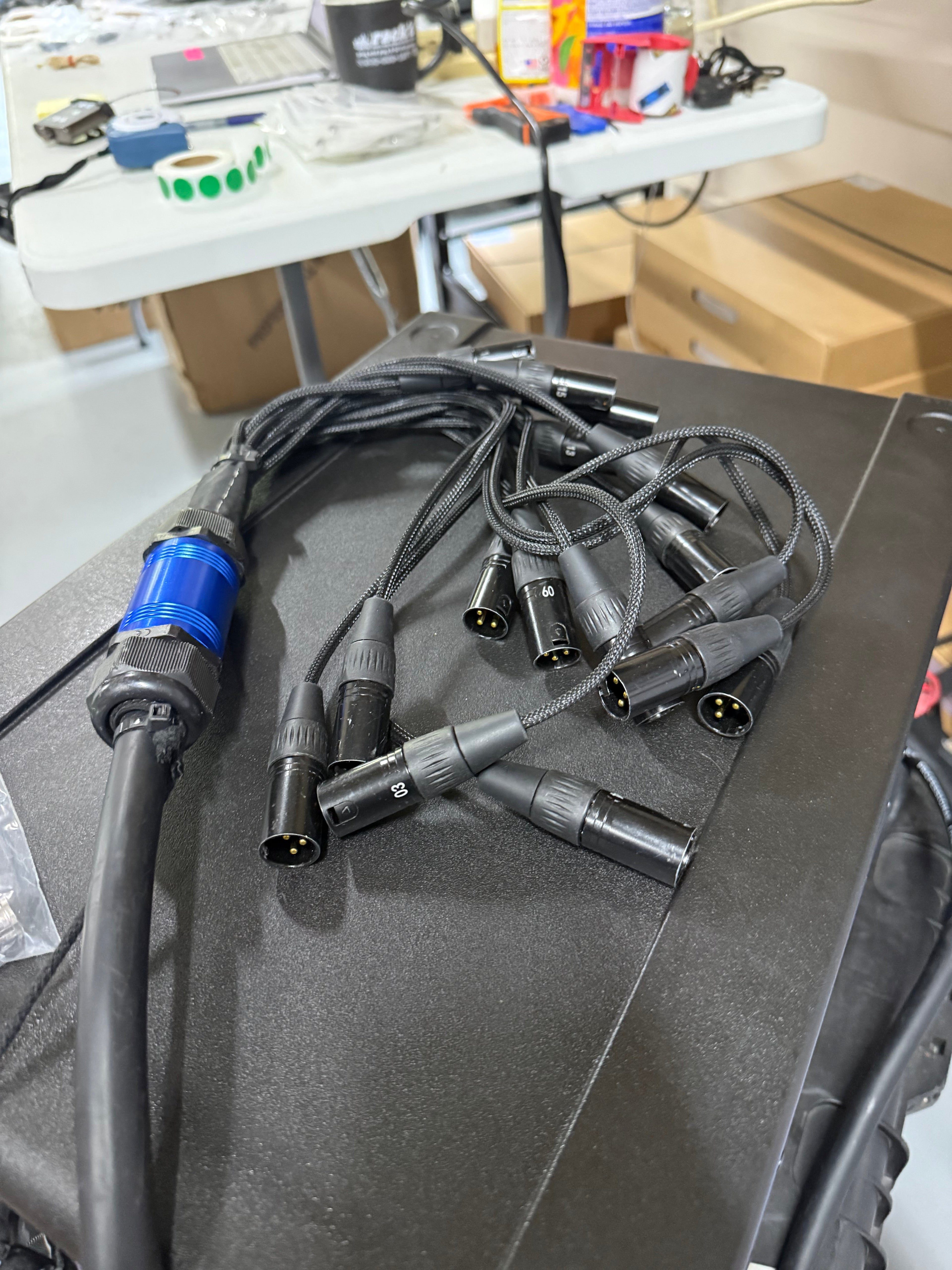

The Lectrosonics DSQD packs four wideband receivers, with analog XLR and Dante digital outputs, into a compact, half-rack chassis that fits into a cart or even a bag. Part of the D-Squared Series and powered by 4th generation Lectrosonics digital technology, the unit delivers the company's high-standards of reliability, flexibility, and studio-quality audio to professionals in TV, broadcast, and film, as well as houses of worship, theater, and concert venues.

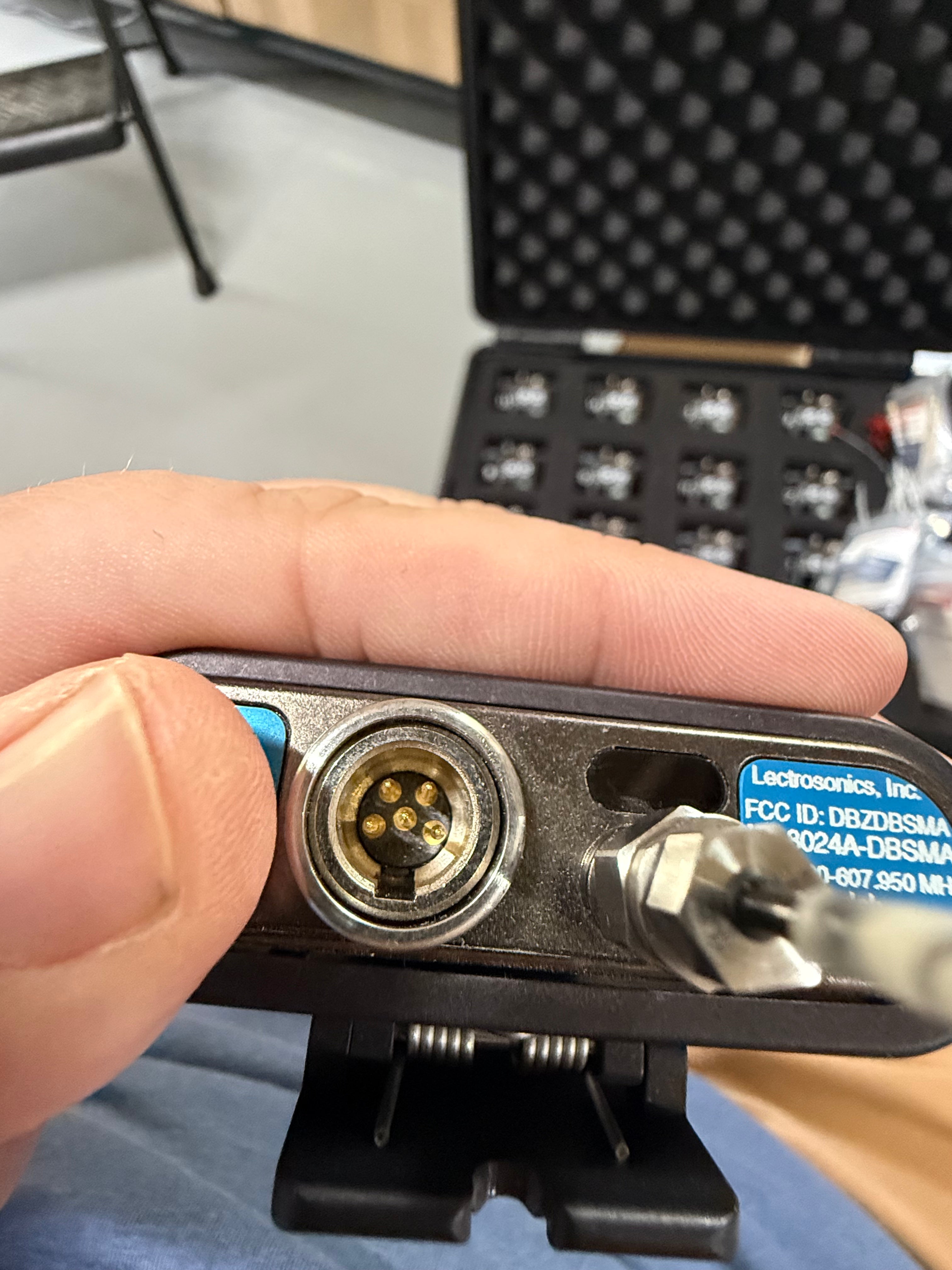

Audio fidelity is outstanding with a flat 20 Hz to 20 kHz frequency response, wide dynamic range, 24-bit/48 kHz digital audio encoding, digital transmission, and ultra-low latency. The DSQD tunes continuously across the extended UHF band from 470 to 608 MHz. It features tracking filters that stay centered on the selected frequency, ensuring excellent RF performance even in difficult environments. Three selectable diversity modes can be employed, depending on the needs of the application. The DSQD is optimized for the DBu bodypack and DHu handheld digital transmitters, but is also backward-compatible with any Digital Hybrid wireless transmitter. Three levels of AES 256-CTR encryption are available when using digital transmitters.

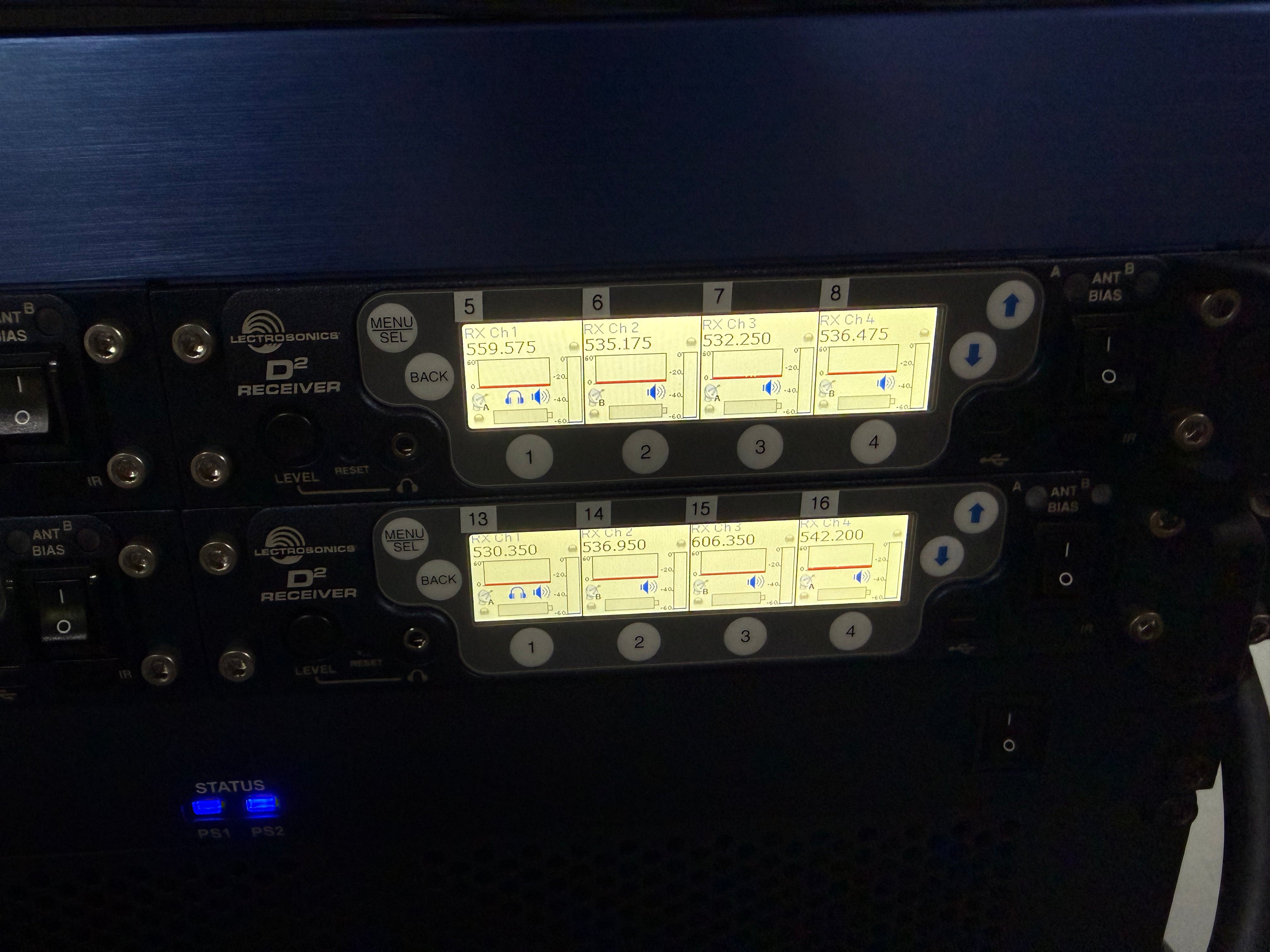

The streamlined menu structure makes the unit easy to use and quick to set up with auto-scan and two-way IR sync. A large, high-resolution backlit LCD and large membrane switches provide an intuitive interface that is highly visible in daylight or dimly lit conditions. The DSQD can be programmed and monitored over its USB or Ethernet connections using the Wireless Designer software for Mac/Windows (free download available separately). The software allows for offline full-system frequency coordination, greatly reducing setup time.

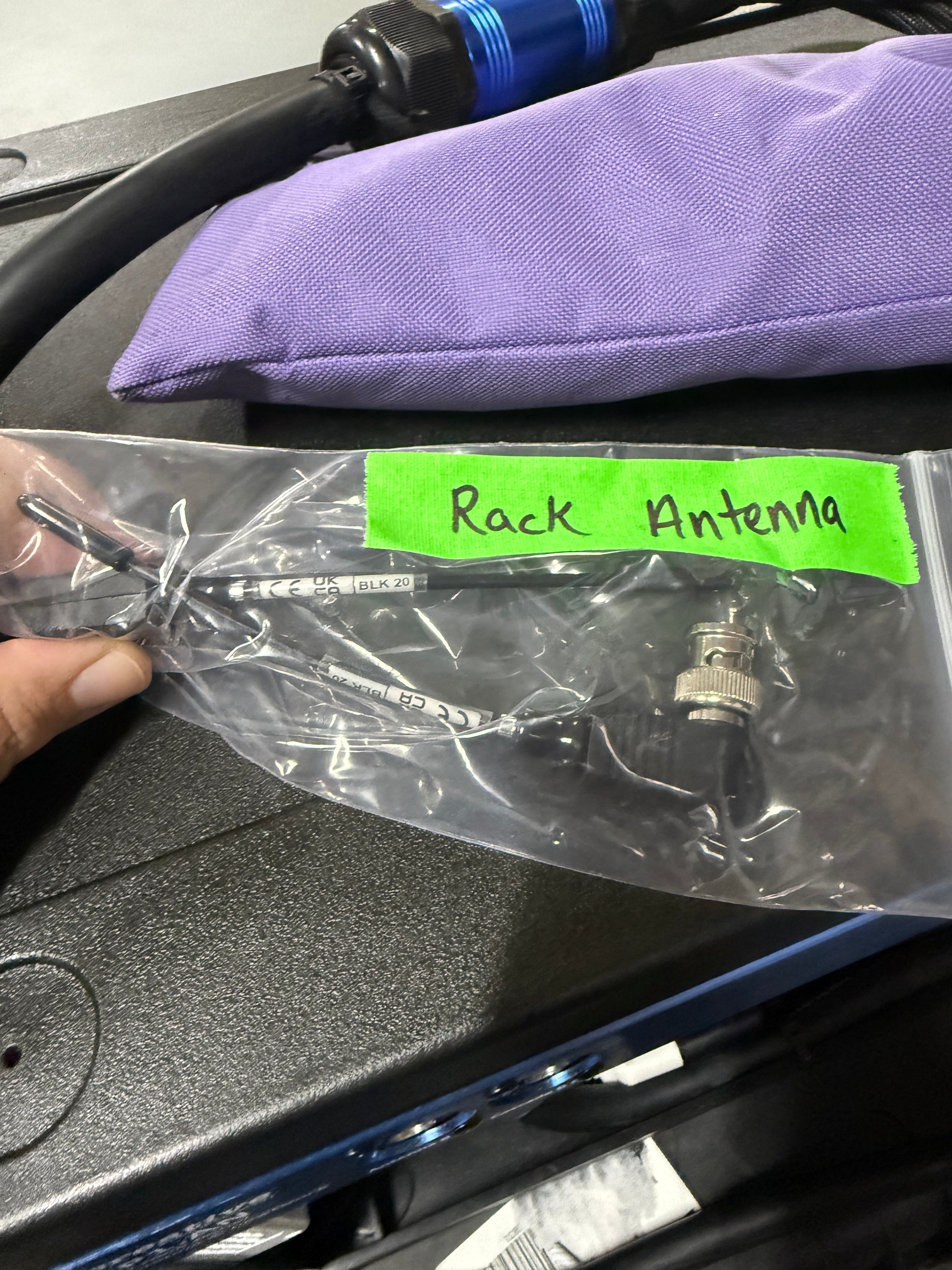

Antenna ports on the rear panel accept input from remote antennas. The antenna "loop-thru" cascade outputs use an internal multi-coupler, enabling you to run multiple receivers from a single pair of antennas without the need for additional components. The DSQD includes half the rack hardware needed to mount two units together, yielding 8 channels in 1RU. If you're rackmounting only a single DSQD, the RMPM2T-1 mounting kit (available separately) is required.
Backward Compatibility
System Performance
- 1.4 ms latency, transmitter input to analog output, using a digital transmitter
- <2.9 ms latency, transmitter input to analog output, using any Digital Hybrid Wireless transmitter
- THD+N of 0.05% at 1 kHz, -10 dBFS
- 108 dB of dynamic range
Three Levels of Diversity Reception
Switched: The receiver selects the antenna with the best signal. In this mode, there are four receivers available.
Ratio: Two receiver channels can be paired as one receiver. Both channels are set on the same frequency. One receiver in the pair is fixed on Antenna A, while the other receiver is fixed on Antenna B. The DSQD automatically uses whichever receiver’s RF signal quality is better.
Frequency: Two receiver channels are paired as one receiver. Each channel is set to a different frequency. The DSQD automatically uses whichever receiver’s RF signal quality is better.
Three Levels of Encryption
- Universal: This is the most convenient encryption option available. All encryption-capable Lectrosonics transmitters and receivers contain the Universal Key. The key does not have to be generated by the DSQD. Simply set a Lectrosonics encryption-capable transmitter and the DSQD to Universal, and the encryption is in place.
- Digital talkback capability when used with talkback-enabled transmitters
- Stereo headphone jack with retractable headphone volume knob for audio monitoring per channel
- Antenna bias power can be engaged in the menu, and front-panel LEDs show the status
- Serial input and output ports for connecting receivers to each other for data sharing
- Adding a pair of ALP690 active antennas increases the range of your system and offers increased protection against interference
