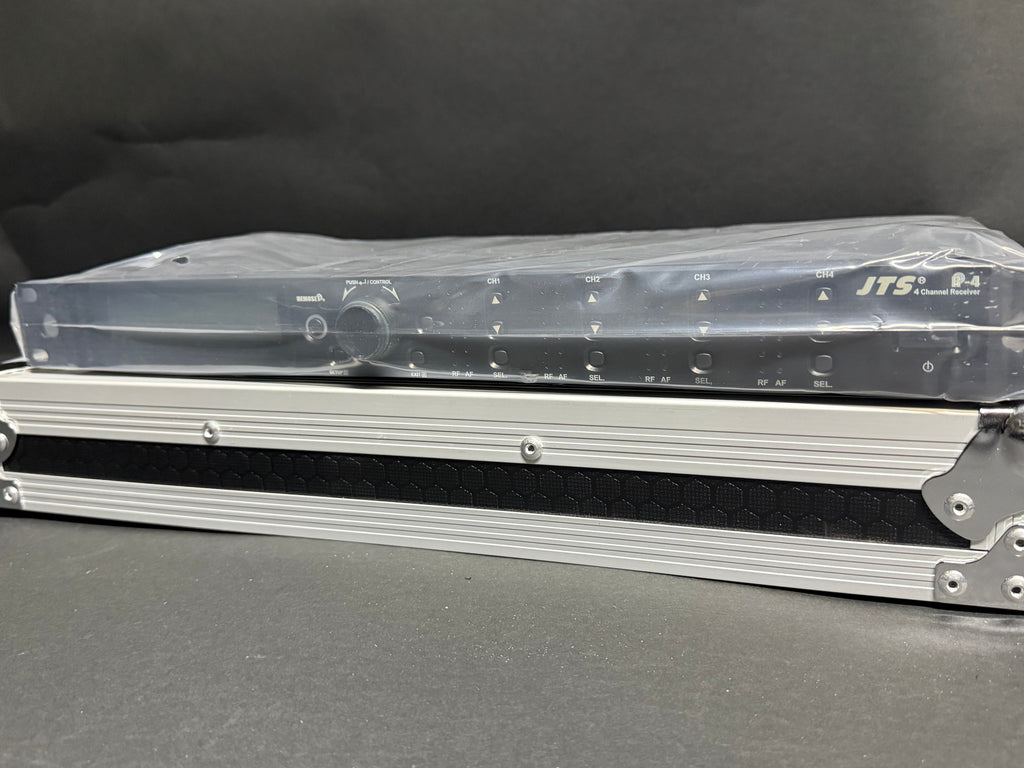

JTS R-4 Dual Wireless System (Receiver Only)

Transmitters and Microphones sold separately.

JTS R-4TBM / CM-501 transmitter & mic: https://audacious.pro/products/jts-r-4tbm-cm-501-wireless-transmitter-cardioid-lavalier-microphone

JTS CM-501 Mic: https://audacious.pro/products/jts-cm-501-cardioid-lavalier-microphone

The system is designed with JTS newest generation wireless technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The R-4 is a 4 channel system in a 19” one U case. Antenna outputs and AC power supply are designed to be cascaded. It provides great convenience to installation.

JTS patented REMOSET feature sends all microphone data by pushing of one button. Moreover all 4 microphones can receive correspondent data at the same time after one pushing. As always JTS provides detailed and full adjustment for best audio and radio performance.

Specifications:

• Frequency Preparation
• PLL Synthesized Control
• Carrier Frequency Range UHF 506-542 MHz
• S / N Ratio > 105dB
• T.H.D <0.6% @ 1KHz
• Display Contents Group, Channel, Frequency, Antenna A/B, Mute Display, AF Meter (LED  BAR), RF Meter (LED BAR) , Battery Status
• Controls Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad
• Audio Output Level -12dB
• AF Output Impedance 600Ω
• Squelch Pilot Tone & Noise Mute
• Operation Voltage 100 ~ 240V

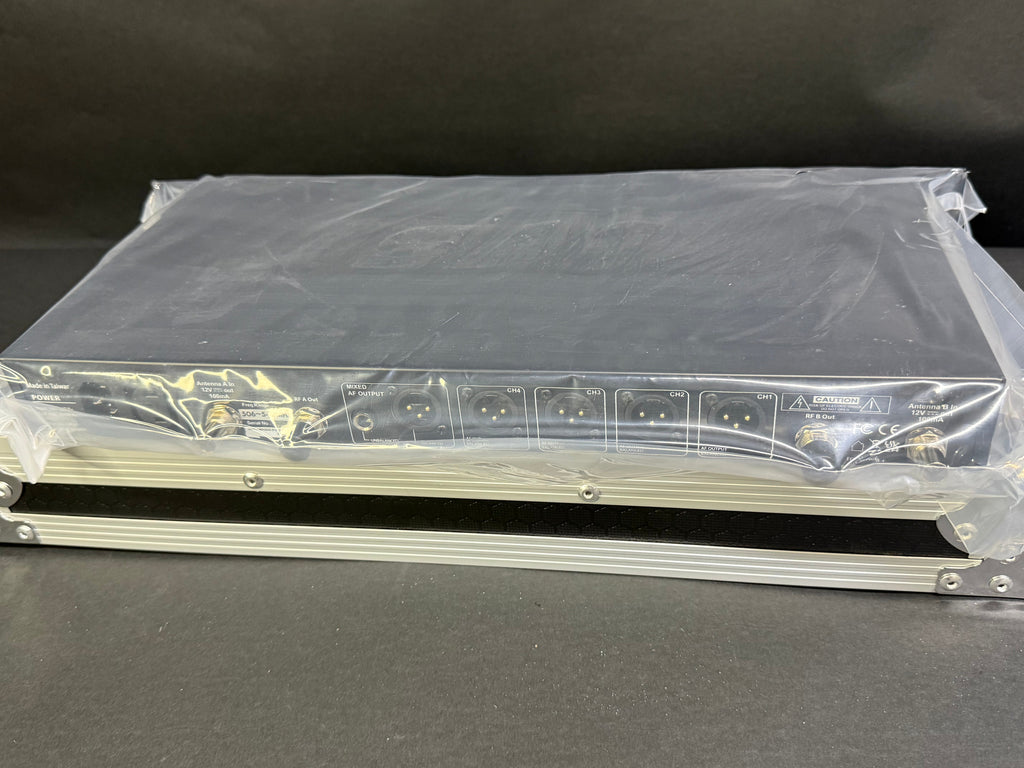

• Output Connector 4 independent XLR outputs, and 1 Ø6.3mm and 1 XLR for mixed output
• Dimension (m / m) 212.3mm(W)*38.3mm(H)* 144mm(D)
  Notes Actual product specifications may vary depending on region.

Technical Specifications:

Carrier Frequency Range: UHF 506-542 MHz; Signal to Noise Ratio: >105dB; Total Harmonic Distortion: <0.6% @ 1KHz; Audio Output Level: -12dB; AF Output Impedance: 600Ω; Squelch: Pilot Tone & Noise Mute; Operation Voltage: 100-240V; Output Connectors: 4 independent XLR outputs, 1 6.3mm and 1 XLR for mixed output; Dimensions: 212.3mm(W) x 38.3mm(H) x 144mm(D).
