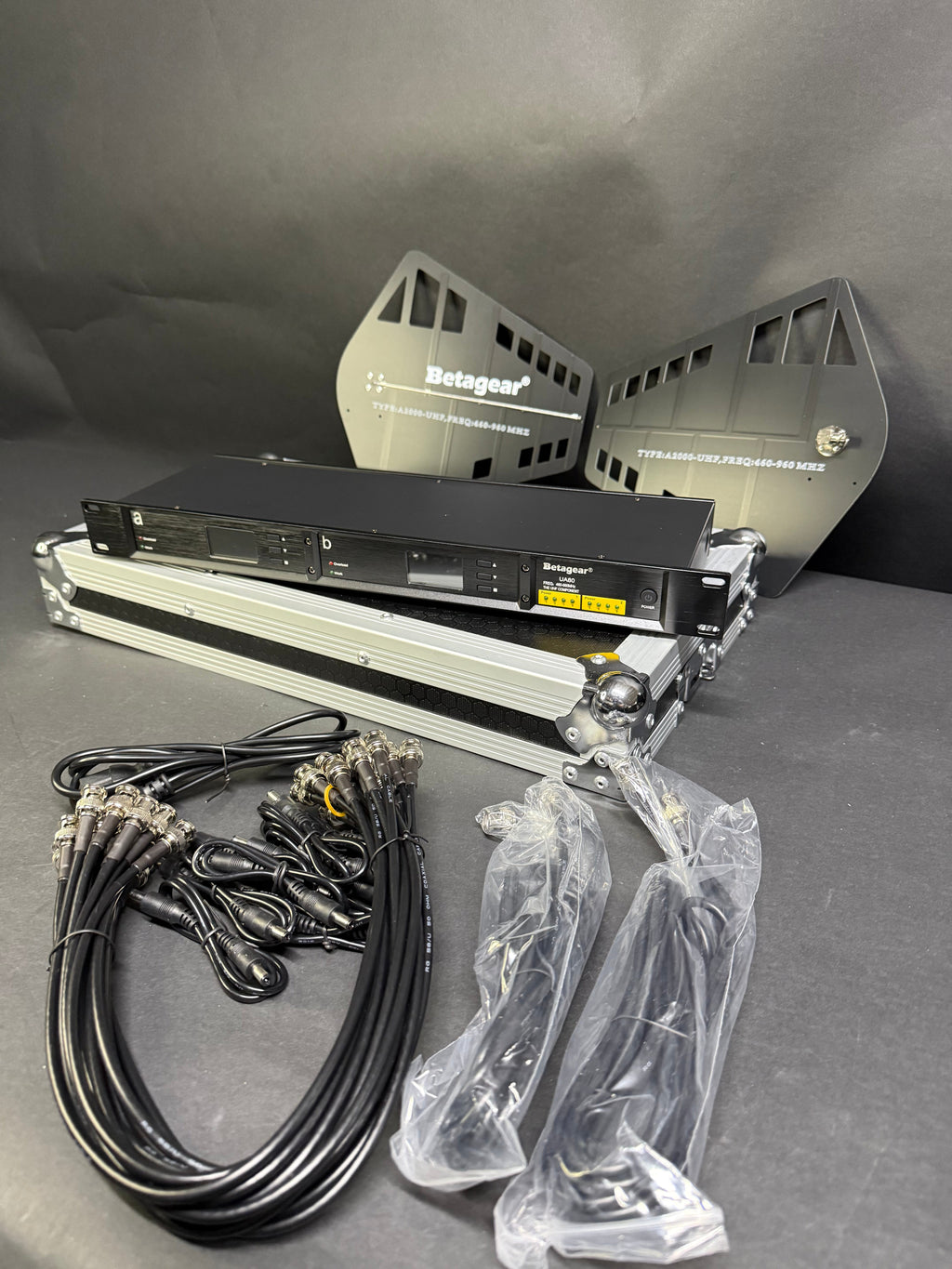

Creative Audio 8 Way Antenna Distribution System & PASSIVE Antenna Paddles
Creative Audio 8 Way Antenna Distribution System & PASSIVE Antenna Paddles

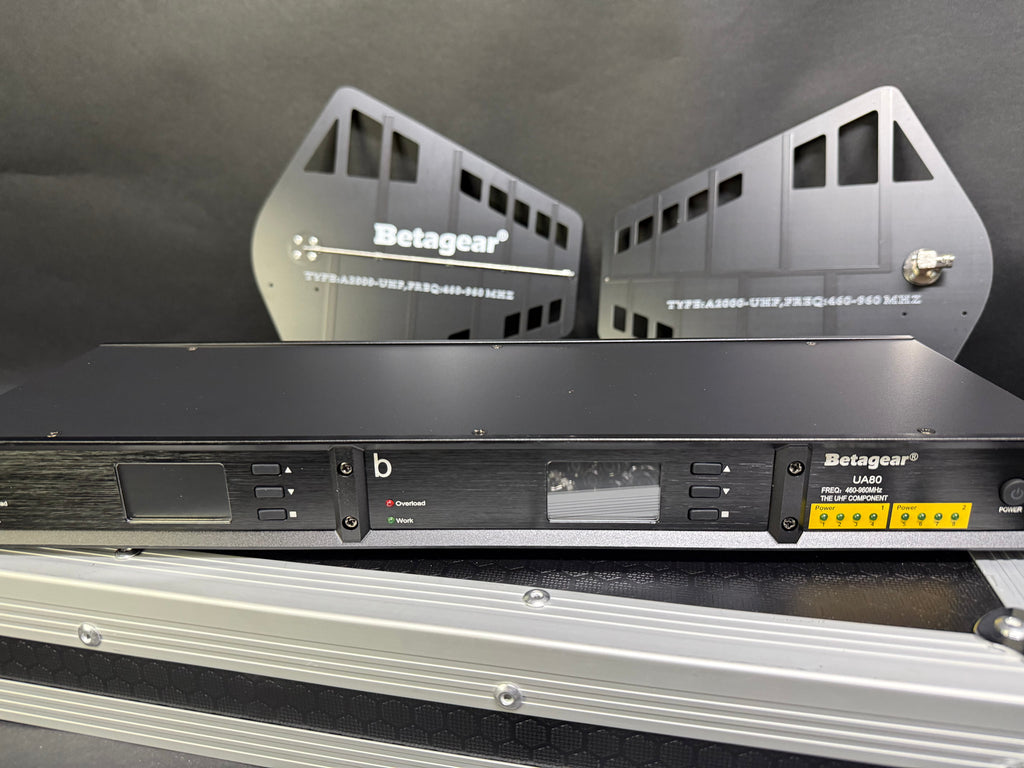

UA90 is an active wideband UHF antenna splitter, using a pair of RF signal antennas, can connect up to 8 wireless receivers, or use the cascade method to cascade up to 8 antenna splitters for 56 sets of wireless receivers , And power the active antenna through the BNC cable. Ultra-wide working frequency band 450-1000MHz. LCD high-definition display, 32-level RF level adjustment can most effectively ensure the best signal needs of the wireless receiver, ensuring that the maximum working distance can be achieved even if different lengths and different types of cables are used. RF signal overload indicator always monitors the quality of radio waves.
Distributor Specs:
- Ultra-wide working frequency 450-1000MHz to ensure the maximum flexibility of the system
- 32-level adjustable RF signal level for optimizing the receiving efficiency of different cables

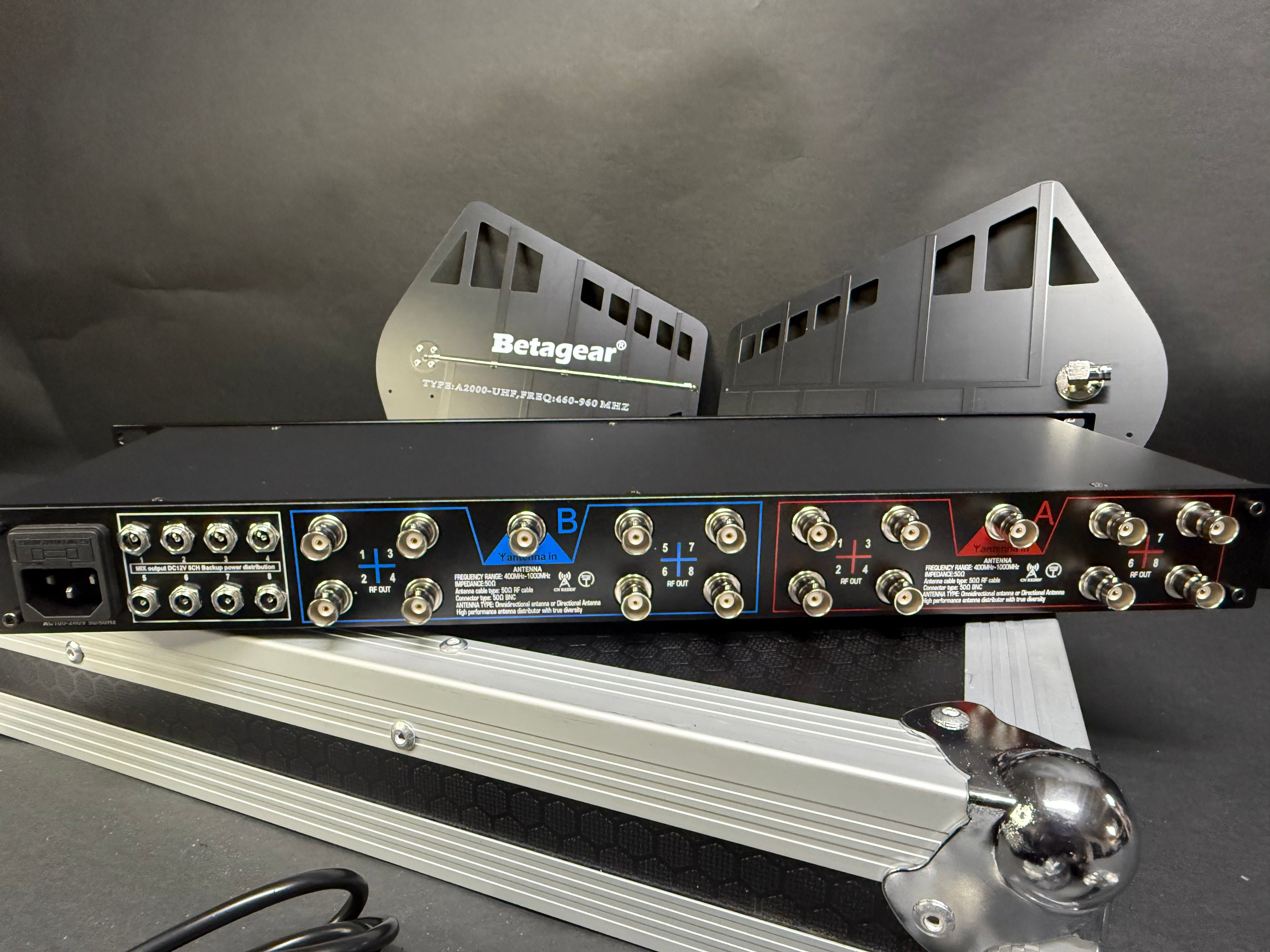

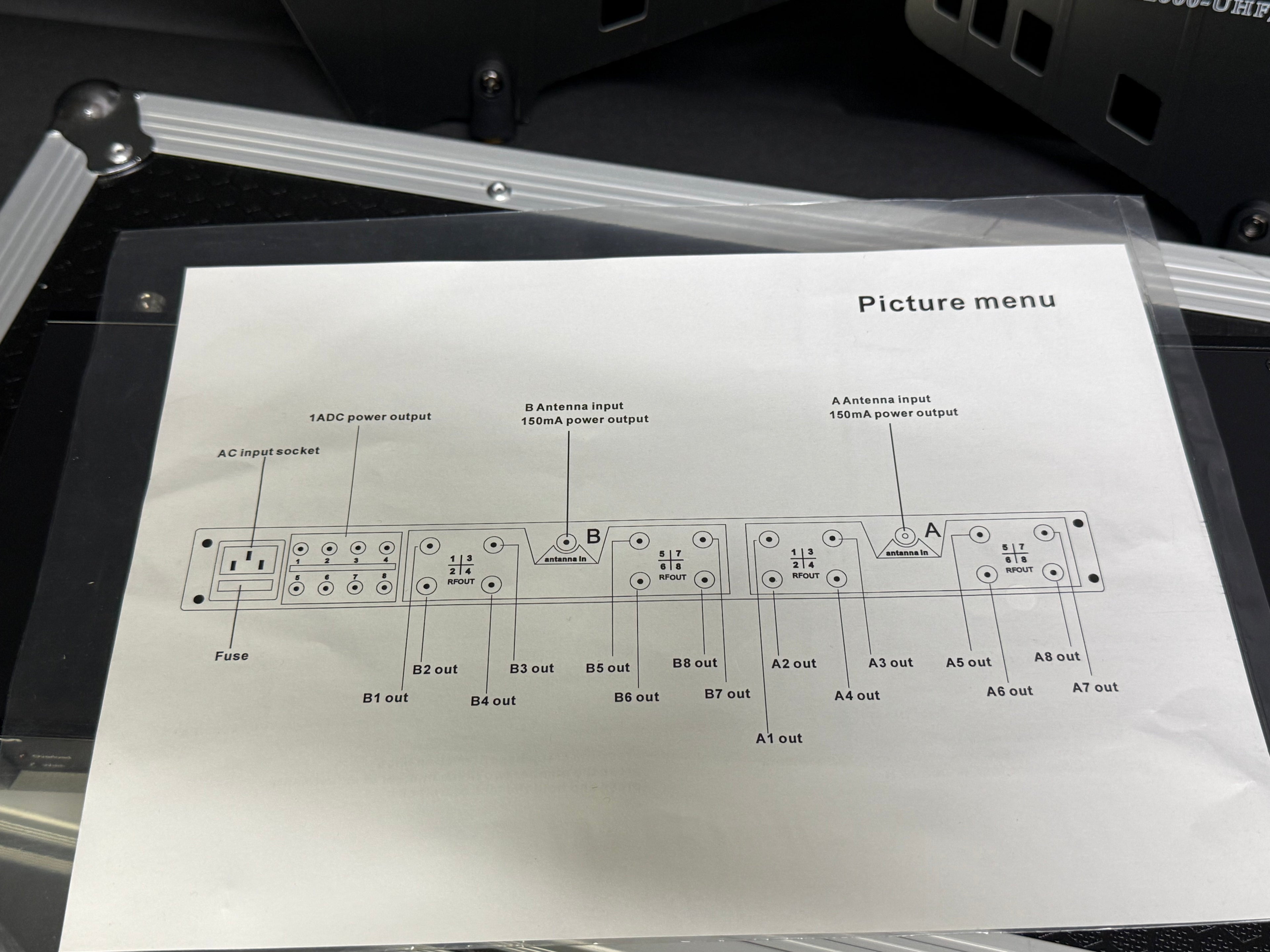

- Link output: 8 wireless receivers can be linked to form a large-scale system

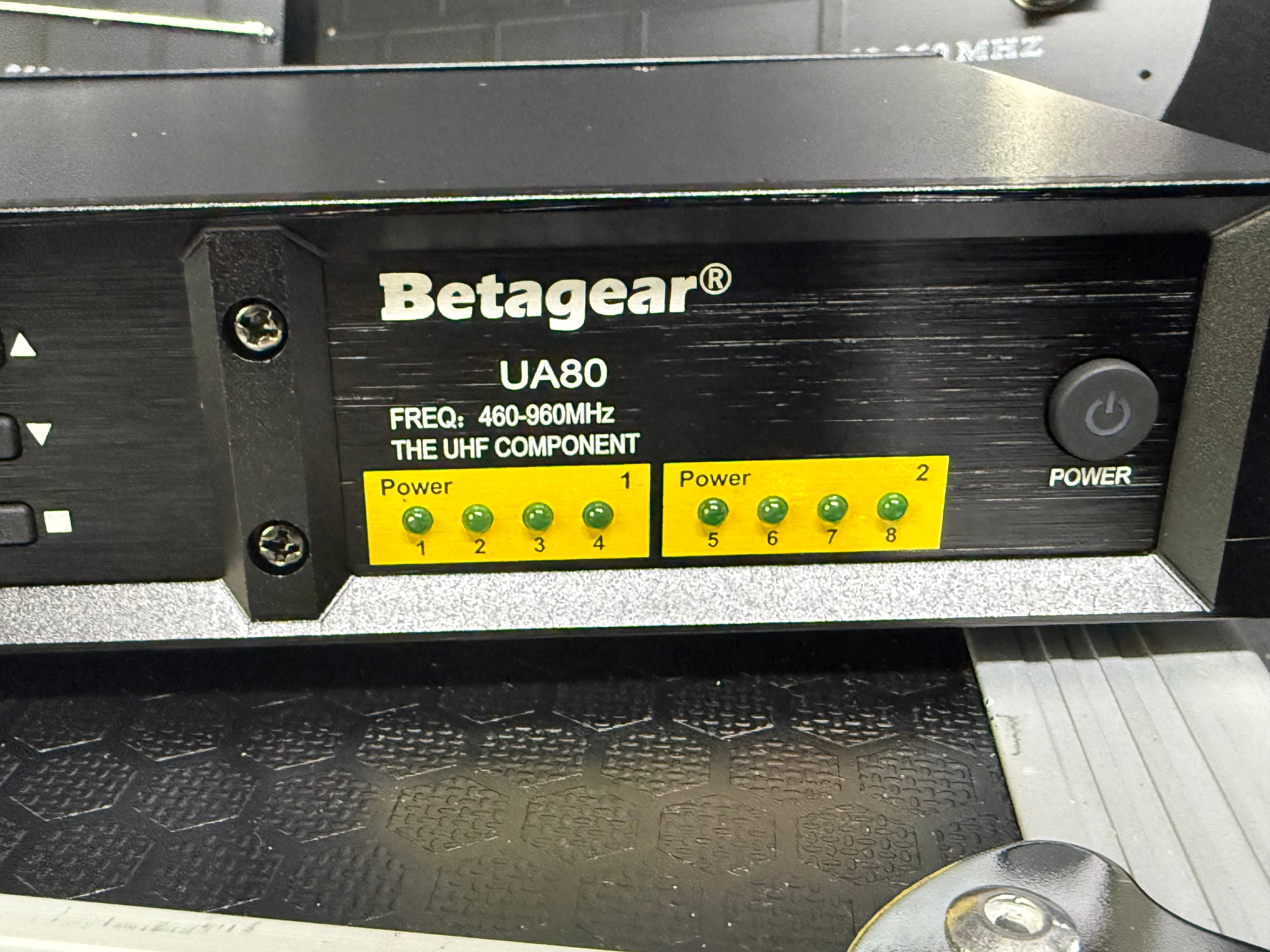

- RF level overload LED

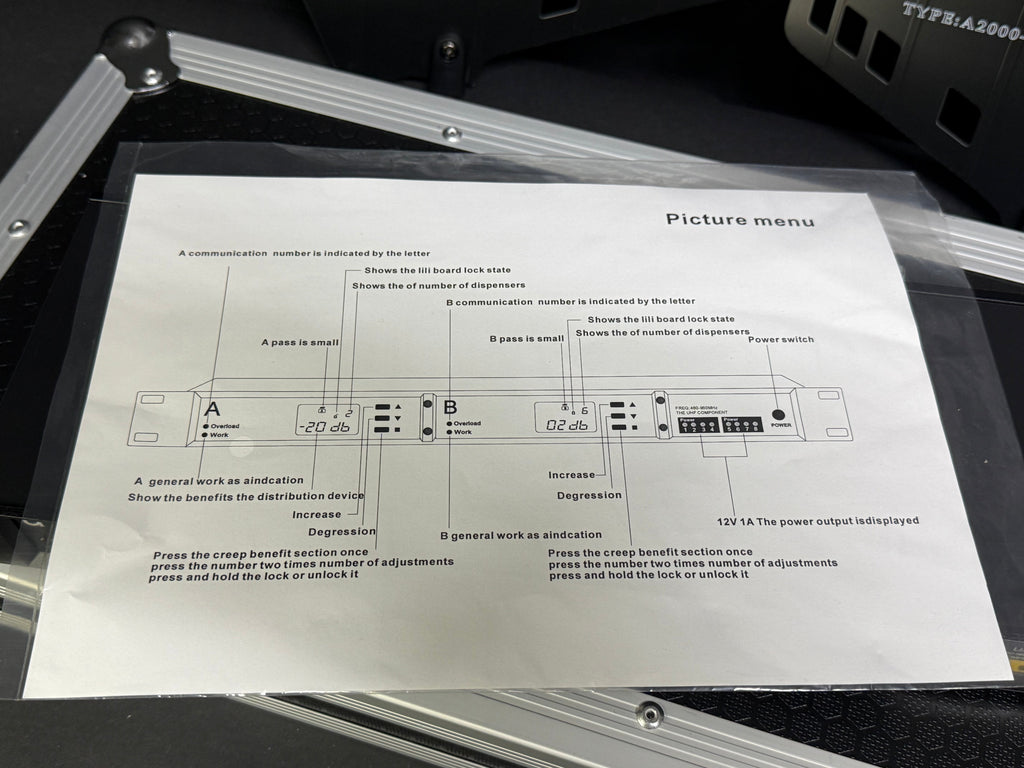

- High-definition LCD display
- The machine code record is adjustable
- Panel lock function
Distributor Gain amplifier technical index:
- Frequency: U section 450-1000MHz
- Input/output impedance: 50 ohms
- Interface: B-type female seat
- Gain (32 levels adjustable): -24dB to +12dB in 1dB steps
- 3rd order intermodulation intercept point : +38dBm (typical)
- Gain flatness: +1dB, full frequency band
- Power supply: AC100-260VAC/T2A 47-63 Hz

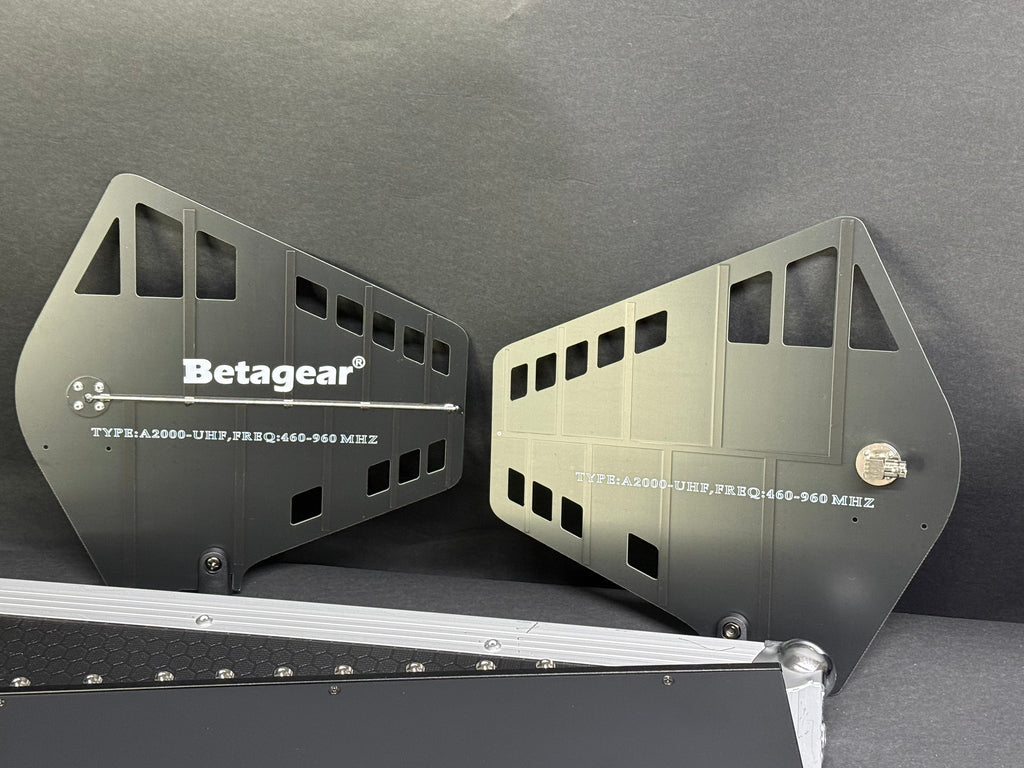

Passive Paddles Antenna Feature:
- A2000 is a broadband U-segment LPDA antenna
- Enhance signal reception by 12dB, radiation angle 90 degrees
- Antenna size: 275mmX275mmX40mm
- Structure: epoxy glass fiber
- Surface: black matte
Passive Paddles Gain amplifier technical index:
- Frequency: U section 460-960MHz
- Input/output impedance: 50 ohms (SWR<=1:1.5;Typical=1:1.4)
- Interface: B-type female
- Gain (maximum): 3dB (typical)
- 3rd order intermodulation intercept point: +45dBm (typical)
- Gain flatness: +1dB, full frequency band
Condition Guide. All Stage Gear products are professionally inspected and tested before shipment.
- Clearance: Brand new, unused inventory that is discontinued or no longer stocked.
- B-Stock: Open-box, demonstration, or lightly used equipment. Fully tested, complete, and in excellent working condition. May show minor cosmetic wear.
- C-Stock: Professionally used equipment. Fully tested and operational with moderate cosmetic wear consistent with normal use.
- D-Stock: Functional B- or C-Stock equipment with cosmetic wear and/or missing accessories. Included components are listed on the product page and additional items may be required before use.
All used equipment is sold in the condition identified on this product page. All sales are final once shipped. No returns, exchanges, or refunds are permitted except as provided noted here. For any Clearance, B-Stock or C-Stock items, these are professionally tested and backed by a 90-day limited warranty against functional defects. Approved warranty claims require the item to be returned to Stage Gear for evaluation. At our discretion, the item will be repaired, replaced, or store credit will be issued. No cash refunds. For D-Stock, these are sold AS IS with no warranty, no returns, no exchanges, and no refunds. For the avoidance of doubt, any cosmetic wear, packaging condition, and other characteristics consistent with the item's condition grade are not considered defects.
